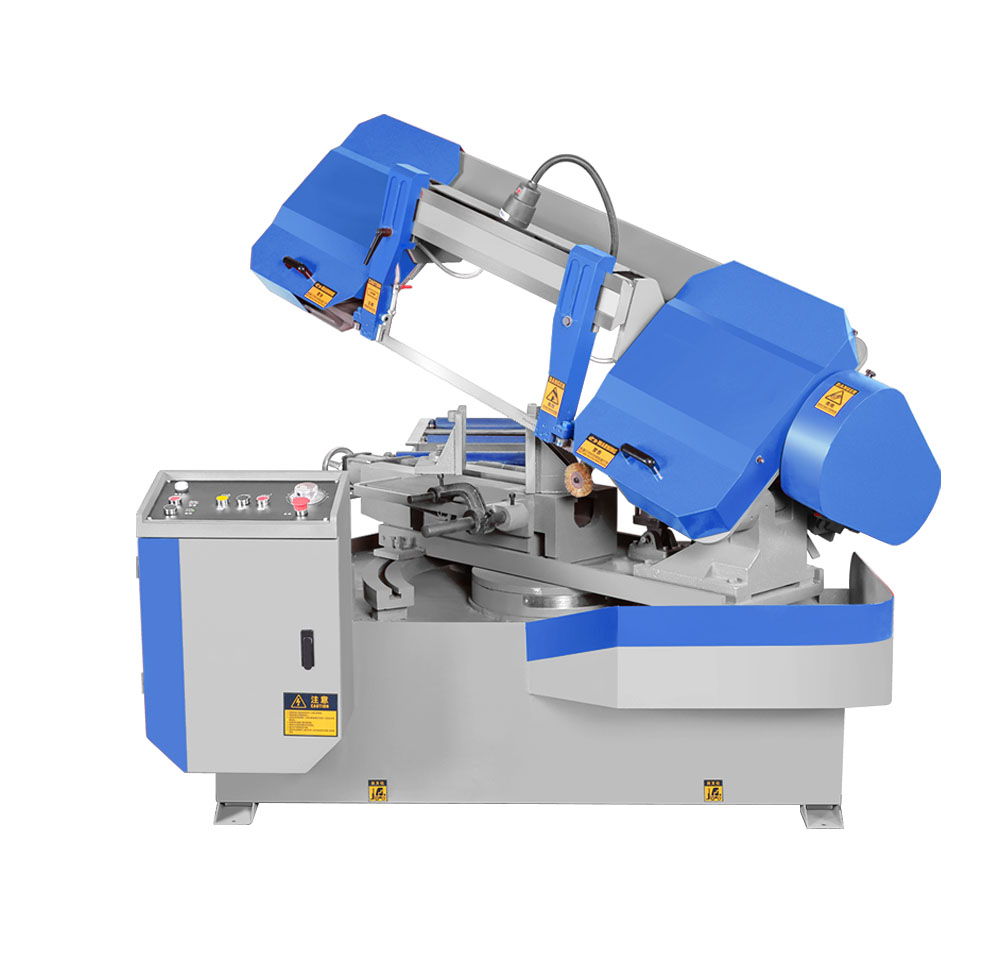

GHZ4230
山东邦城科技有限公司
Technical parameters:
| model | unit | GHZ4230 |
| 90° sawing round material | mm | 300 |
| 90° sawing and cutting | mm | 320*300 |
| 45° sawing round material | mm | 200 |
| 45° sawing and cutting | mm | 220*200 |
| Saw cutting speed | m/min | 27,45,69 |
| Saw blade size | mm | 3850*27*0.9 |
| Main motor power | kw | 3 |
| Hydraulic motor power | kw | 0.55 |
| Cooling motor power | kw | 0.04 |
| Machine tool weight | kg | 950 |
| Dimensions: Length×width×height) | mm | 2100*1300*1550 |
Technical parameters:
| model | unit | GHZ4230 |
| 90° sawing round material | mm | 300 |
| 90° sawing and cutting | mm | 320*300 |
| 45° sawing round material | mm | 200 |
| 45° sawing and cutting | mm | 220*200 |
| Saw cutting speed | m/min | 27,45,69 |
| Saw blade size | mm | 3850*27*0.9 |
| Main motor power | kw | 3 |
| Hydraulic motor power | kw | 0.55 |
| Cooling motor power | kw | 0.04 |
| Machine tool weight | kg | 950 |
| Dimensions: Length×width×height) | mm | 2100*1300*1550 |
