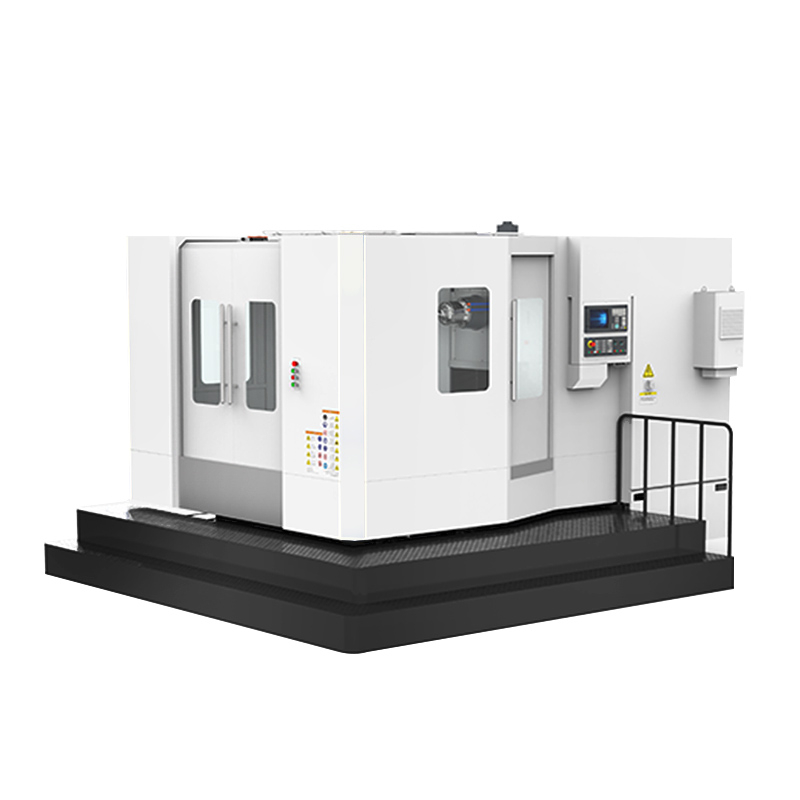

HMC400
山东邦城科技有限公司
Technical parameters:
| model | unit | HMC400 |
| X-axis stroke | mm | 600 |
| Y-axis stroke | mm | 600 |
| Z-axis stroke | mm | 600 |
| Distance from the nose end of the spindle to the work surface | mm | 71-700 |
| Distance from the center of the spindle to the work surface | mm | 0-600 |
| Fast Move (X/Y/Z) | m/min | 24/24/20 |
| Cutting feed speed | mm/min | 1-5000 |
| Slewing table size | mm | 400×400 |
| Slewing workbench load bearing | kg | 400 |
| Number of T-shaped slots/width/pitch of rotary workbench | mm | 5-14×100 |
| Positioning accuracy of CNC rotary workbench | mm | ±5' |
| Repeat positioning accuracy of CNC rotary workbench | mm | ±2' |
| Spindle motor power | KW | 11 |
| Maximum spindle speed | r/min | 6000/8000 |
| /12000 | ||
| Spindle nose taper | BT40/BT50 | |
| Tool magazine capacity | 把 | 24 |
| Tool magazine type | Disc type | |
| Tool diameter | mm | Φ78/Φ120 |
| Φ112/Φ200 | ||
| Tool length | mm | 300 |
| Tool weight | mm | 8/18 |
| Time for changing tools | S | 2.3/4 |
| Machine tool weight | kg | 9000 |
| External dimensions | mm | 2500×2150×2050 |
Technical parameters:
| model | unit | HMC400 |
| X-axis stroke | mm | 600 |
| Y-axis stroke | mm | 600 |
| Z-axis stroke | mm | 600 |
| Distance from the nose end of the spindle to the work surface | mm | 71-700 |
| Distance from the center of the spindle to the work surface | mm | 0-600 |
| Fast Move (X/Y/Z) | m/min | 24/24/20 |
| Cutting feed speed | mm/min | 1-5000 |
| Slewing table size | mm | 400×400 |
| Slewing workbench load bearing | kg | 400 |
| Number of T-shaped slots/width/pitch of rotary workbench | mm | 5-14×100 |
| Positioning accuracy of CNC rotary workbench | mm | ±5' |
| Repeat positioning accuracy of CNC rotary workbench | mm | ±2' |
| Spindle motor power | KW | 11 |
| Maximum spindle speed | r/min | 6000/8000 |
| /12000 | ||
| Spindle nose taper | BT40/BT50 | |
| Tool magazine capacity | 把 | 24 |
| Tool magazine type | Disc type | |
| Tool diameter | mm | Φ78/Φ120 |
| Φ112/Φ200 | ||
| Tool length | mm | 300 |
| Tool weight | mm | 8/18 |
| Time for changing tools | S | 2.3/4 |
| Machine tool weight | kg | 9000 |
| External dimensions | mm | 2500×2150×2050 |
