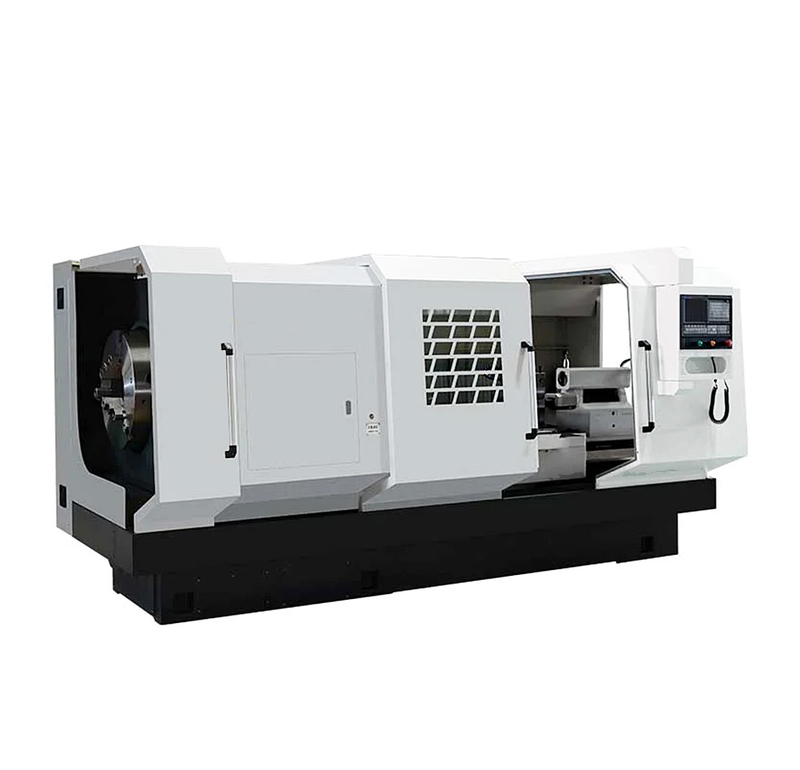

QK1322
山东邦城科技有限公司
Technical parameters:
| Main technical parameters | unit | QK1322 |
| Maximum slewing diameter of bed | mm | 630/800 |
| Maximum slewing diameter on cross-slide | mm | 340/520 |
| Maximum workpiece length | mm | 1000/1500/2000/3000/4000/5000/6000 |
| Machining pipe thread diameter range | mm | 50-220 |
| Bed rail width | mm | 550 |
| Bed body load bearing range | T | 3 |
| Spindle bore size range | mm | 225 |
| Spindle speed stage | - | 4-speed frequency conversion VF.4 steps |
| Spindle speed range | rpm | 20-500 |
| Chuck specifications | mm | φ500 manual 3 claws |
| φ500 4-jaw manual | ||
| Knife holder type | - | 4-station electric tool holder |
| CNC turret 4 position | ||
| Tool size | mm | 32x32 |
| X-axis stroke | mm | 340/420 |
| Z-axis stroke | mm | 750-5750 |
| X-axis fast feed speed | mm/min | 4000 |
| Z-axis fast feed speed | mm/min | 6000 |
| Tail seat sleeve diameter | mm | φ100 |
| Tail seat sleeve tapered | - | MT6 |
| Tail seat sleeve stroke | mm | 250 |
| Spindle motor | kW | 11 |
| Cooling pump motor | kW | 0.25 |
| Machine tool weight | kg | 4700-8700 |
| Dimensions (width × height) | mm | 1880*1850 |
| Dimensions (Length) | mm | 3000-8300 |
Technical parameters:
| Main technical parameters | unit | QK1322 |
| Maximum slewing diameter of bed | mm | 630/800 |
| Maximum slewing diameter on cross-slide | mm | 340/520 |
| Maximum workpiece length | mm | 1000/1500/2000/3000/4000/5000/6000 |
| Machining pipe thread diameter range | mm | 50-220 |
| Bed rail width | mm | 550 |
| Bed body load bearing range | T | 3 |
| Spindle bore size range | mm | 225 |
| Spindle speed stage | - | 4-speed frequency conversion VF.4 steps |
| Spindle speed range | rpm | 20-500 |
| Chuck specifications | mm | φ500 manual 3 claws |
| φ500 4-jaw manual | ||
| Knife holder type | - | 4-station electric tool holder |
| CNC turret 4 position | ||
| Tool size | mm | 32x32 |
| X-axis stroke | mm | 340/420 |
| Z-axis stroke | mm | 750-5750 |
| X-axis fast feed speed | mm/min | 4000 |
| Z-axis fast feed speed | mm/min | 6000 |
| Tail seat sleeve diameter | mm | φ100 |
| Tail seat sleeve tapered | - | MT6 |
| Tail seat sleeve stroke | mm | 250 |
| Spindle motor | kW | 11 |
| Cooling pump motor | kW | 0.25 |
| Machine tool weight | kg | 4700-8700 |
| Dimensions (width × height) | mm | 1880*1850 |
| Dimensions (Length) | mm | 3000-8300 |
