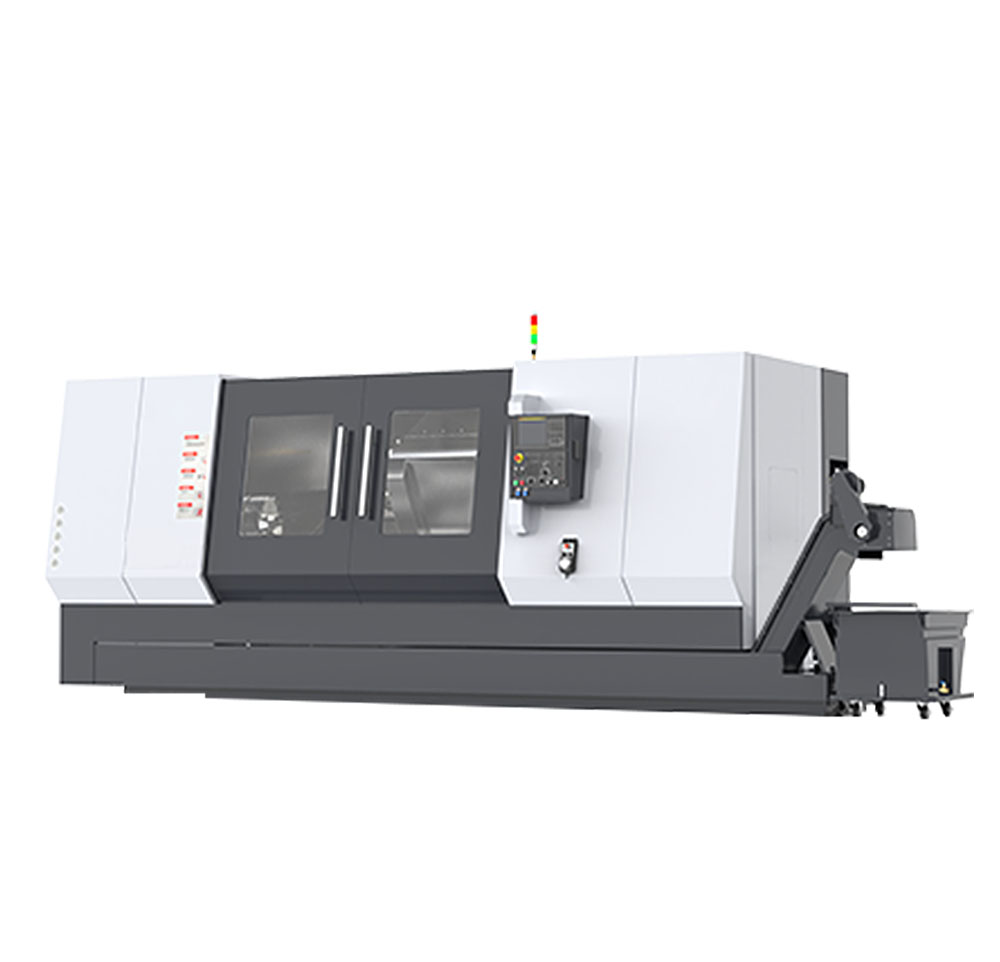

TCK700
山东邦城科技有限公司
Features:
The bed body is inclined, usually between 30° and 60°, and the common ones are 30°, 45°, 60°, etc. This design makes the machine tool's center of gravity lower and has stronger stability, and is conducive to the natural decline of chips, facilitates chip removal and reduces chip jamming.
High-precision linear guide rails are used as support for moving parts, and have the advantages of small friction coefficient, high motion accuracy and fast response speed. They can ensure the precise positioning and smooth movement of the machine tool during the processing process, and improve the processing accuracy and surface quality.
Generally, high-performance electric spindles or high-rigid spindle structures are used, with high speed, high torque, fast start and stop, etc., which can adapt to the processing needs of different materials and processes. Spindle bearings usually use high-precision ball bearings or roller bearings to ensure the rotational accuracy and rigidity of the spindle.
According to processing needs, it can be equipped with a multi-station turret or tool holder to realize automatic tool change of multiple tools and improve processing efficiency and flexibility. The positioning accuracy and tool change speed of the turret are also important factors that affect the machining efficiency and quality of the machine tool.
Technical parameters:
| project | UNIT | TCK700 |
| Maximum slewing diameter | mm | Φ700 |
| Maximum slewing diameter of bed | mm | Φ500 |
| Maximum machining length | mm | 1500/2000/3000 |
| Spindle head form | mm | A2-11/8 |
| Motor power | kW | 15/22(servo) |
| Spindle speed | r/min | 2500 |
| Spindle through hole diameter | mm | Φ88/105/130 |
| Bed angle | DEG | 45° |
| X Itinerary | mm | 360 |
| XZ fast moving speed | m/min | 15/24 |
| XZ servo motor torque | Nm | 22/22 |
| Knife holder form | / | 12T hydroulic position (Optional power turret) |
| Tool size | mm | 32×32/050 |
| Chuck | mm | 10'/12'/15' |
| Repeat positioning accuracy | mm | ±0.003 |
| Tail sleeve diameter/stroke | mm | Φ150/150 internal rotation |
| Sleeve cone hole | MT | 5/6 |
| size | m | 4.6/5.8/6.5×2.2×23 |
| load | T | 8/10/11.6 |
Features:
The bed body is inclined, usually between 30° and 60°, and the common ones are 30°, 45°, 60°, etc. This design makes the machine tool's center of gravity lower and has stronger stability, and is conducive to the natural decline of chips, facilitates chip removal and reduces chip jamming.
High-precision linear guide rails are used as support for moving parts, and have the advantages of small friction coefficient, high motion accuracy and fast response speed. They can ensure the precise positioning and smooth movement of the machine tool during the processing process, and improve the processing accuracy and surface quality.
Generally, high-performance electric spindles or high-rigid spindle structures are used, with high speed, high torque, fast start and stop, etc., which can adapt to the processing needs of different materials and processes. Spindle bearings usually use high-precision ball bearings or roller bearings to ensure the rotational accuracy and rigidity of the spindle.
According to processing needs, it can be equipped with a multi-station turret or tool holder to realize automatic tool change of multiple tools and improve processing efficiency and flexibility. The positioning accuracy and tool change speed of the turret are also important factors that affect the machining efficiency and quality of the machine tool.
Technical parameters:
| project | UNIT | TCK700 |
| Maximum slewing diameter | mm | Φ700 |
| Maximum slewing diameter of bed | mm | Φ500 |
| Maximum machining length | mm | 1500/2000/3000 |
| Spindle head form | mm | A2-11/8 |
| Motor power | kW | 15/22(servo) |
| Spindle speed | r/min | 2500 |
| Spindle through hole diameter | mm | Φ88/105/130 |
| Bed angle | DEG | 45° |
| X Itinerary | mm | 360 |
| XZ fast moving speed | m/min | 15/24 |
| XZ servo motor torque | Nm | 22/22 |
| Knife holder form | / | 12T hydroulic position (Optional power turret) |
| Tool size | mm | 32×32/050 |
| Chuck | mm | 10'/12'/15' |
| Repeat positioning accuracy | mm | ±0.003 |
| Tail sleeve diameter/stroke | mm | Φ150/150 internal rotation |
| Sleeve cone hole | MT | 5/6 |
| size | m | 4.6/5.8/6.5×2.2×23 |
| load | T | 8/10/11.6 |
