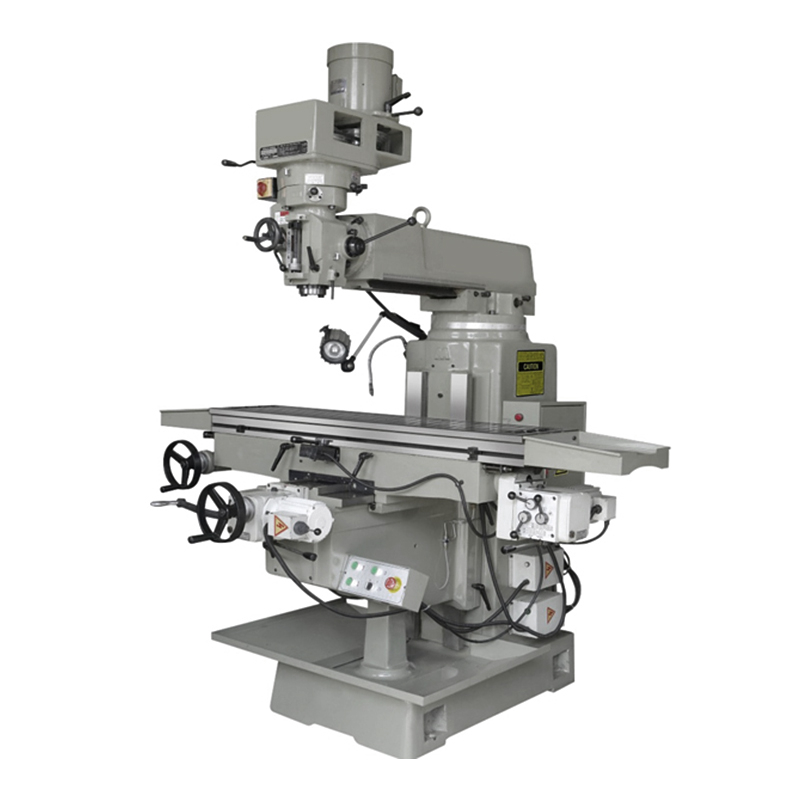

Technical parameters:
| model | unit | X6332(No. 6) |
| Spindle taper | R8 | |
| Spindle speed | GPM (50HZ) | 80-5440GPM (50HZ) |
| Spindle head rotation angle | o | 90o |
| Spindle pipe stroke | mm | 127 |
| Front and rear tilt angle of spindle | o | 45o |
| Automatic feeding power of spindle (one turn per turn) | mm | 76/38/203 |
| Workbench area | mm | 320*1670 |
| Left and left trip | mm | 1080 |
| Front and rear itinerary | mm | 410 |
| Up and down trip | mm | 460 |
| Number of T-shaped slots | 3 | |
| Spindle power | HP | 5 |
| Machine weight | KG | 2000 |
| Appearance dimensions (length*width*height) | mm | 2010*1780*2350 |
Technical parameters:
| model | unit | X6332(No. 6) |
| Spindle taper | R8 | |
| Spindle speed | GPM (50HZ) | 80-5440GPM (50HZ) |
| Spindle head rotation angle | o | 90o |
| Spindle pipe stroke | mm | 127 |
| Front and rear tilt angle of spindle | o | 45o |
| Automatic feeding power of spindle (one turn per turn) | mm | 76/38/203 |
| Workbench area | mm | 320*1670 |
| Left and left trip | mm | 1080 |
| Front and rear itinerary | mm | 410 |
| Up and down trip | mm | 460 |
| Number of T-shaped slots | 3 | |
| Spindle power | HP | 5 |
| Machine weight | KG | 2000 |
| Appearance dimensions (length*width*height) | mm | 2010*1780*2350 |
