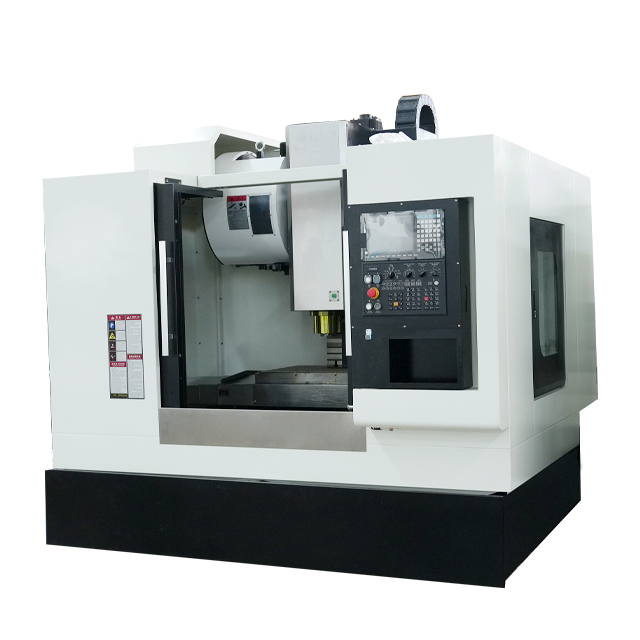

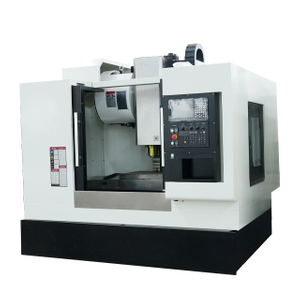

VMC855 Vertical Machining Center

The bed and column adopt the design concept of large spans, which improves the span, increases weight, and greatly improves the rigidity and accuracy retention of the whole machine. The spindle box is designed in a box-type manner, with the spindle guide length increased, and it is combined with the short nose end spindle with better rigidity, the Z-direction six-load slider, and the Z-direction rigidity is greatly improved.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Model:
VMC855
Brand:
山东邦城科技有限公司

Product Description

Features:

The three-axis adopts the 'front three and rear two' transmission mode, which adds one bearing compared to the original, reduces the friction resistance during the transmission process, thereby improving transmission efficiency and reducing energy consumption. The
Y /Z axis adopts a 45mm wide roller linear guide rail, the X axis adopts a 35mm wide roller linear guide rail, and the Z -direction spindle box is a six-load slider structure to ensure the rigidity of the whole machine.

Technical parameters:

project	UNIT	VMC855
Workbench size	mm	1000*550
Maximum weight bearing allowed	kg	600
T-slot	mm	5-18*90
X/Y/Z Itinerary	mm	800/550/550
Distance from the spindle end face to the workbench	mm	120-670
Distance from the center of the spindle to the column	mm	590
Spindle taper		BT40-150
Spindle speed	R/min	8000
Spindle motor power	kW	11-15
Fast moving the X-axis	M/min	48
Y-axis	M/min	48
Z-axis	M/min	48
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003/300
Minimum positioning accuracy	mm	±0.001
Machine tool weight	KG	About5200
Machine tool size	mm	Based on physical measurement
