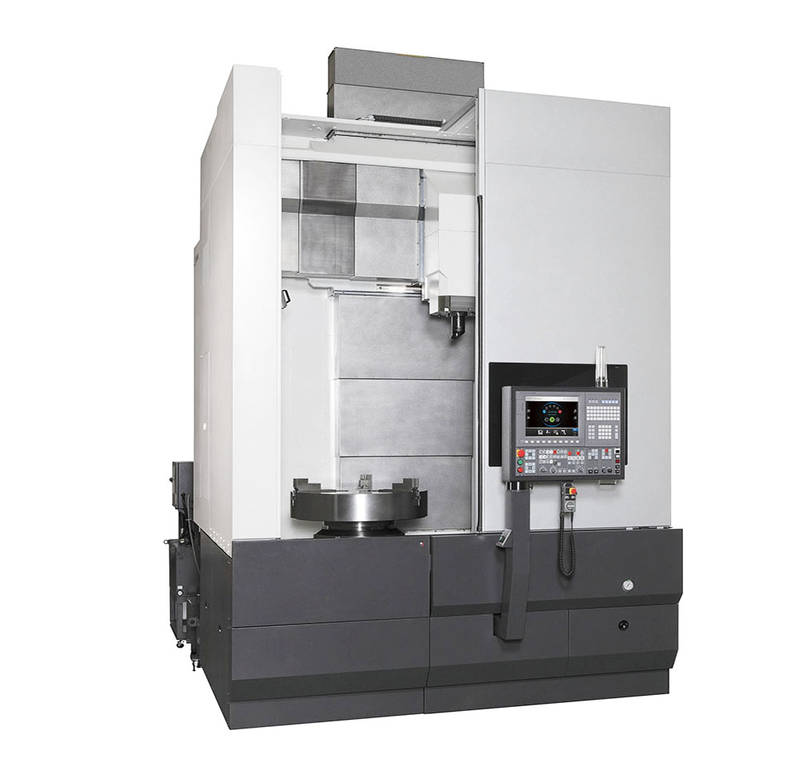

VTC850
山东邦城科技有限公司
Technical parameters:
| model | unit | VTC850 |
| Maximum slewing diameter | mm | 850 |
| Maximum turning diameter | mm | 750 |
| Spindle model | A2-11 | |
| Spindle bearing diameter | mm | 180 |
| Spindle speed range | rpm | 30-800 |
| Spindle output torque | nm | 890 |
| Chuck diameter | 〞 | 24「HYD hydraulic chuck |
| Dot Tower Form | Horizontal 8 workstations/vertical 4 workstations Hor.8Position/ Ver. Position | |
| Dota specifications | 125 | |
| Tool size | mm | □32/φ50 |
| Turtle X-axis stroke | mm | -500 |
| Turtle Z axis stroke | mm | 800 |
| Distance of the lower end face of the turret to the upper end face of the chuck | mm | 0-800 |
| X/Z Line Rail | 55 Roller | |
| X/Z lead screw diameter | mm | φ50/φ40 |
| X-axis fast feed | m/min | 15 |
| Z-axis fast feed | m/min | 12 |
| Cutting feed | m/min | 0.1-5000 |
| X-axis motor power/torque | Kw/nm | 2.8/18 |
| Z-axis motor power/torque | Kw/nm | 3.5/22 |
| Spindle motor power/torque | Kw/nm | 30/37- 356 |
| External dimensions (length x width x height) | m | 2.5*2.25*3.15 |
| Machine tool weight | kg | 9500 |
Technical parameters:
| model | unit | VTC850 |
| Maximum slewing diameter | mm | 850 |
| Maximum turning diameter | mm | 750 |
| Spindle model | A2-11 | |
| Spindle bearing diameter | mm | 180 |
| Spindle speed range | rpm | 30-800 |
| Spindle output torque | nm | 890 |
| Chuck diameter | 〞 | 24「HYD hydraulic chuck |
| Dot Tower Form | Horizontal 8 workstations/vertical 4 workstations Hor.8Position/ Ver. Position | |
| Dota specifications | 125 | |
| Tool size | mm | □32/φ50 |
| Turtle X-axis stroke | mm | -500 |
| Turtle Z axis stroke | mm | 800 |
| Distance of the lower end face of the turret to the upper end face of the chuck | mm | 0-800 |
| X/Z Line Rail | 55 Roller | |
| X/Z lead screw diameter | mm | φ50/φ40 |
| X-axis fast feed | m/min | 15 |
| Z-axis fast feed | m/min | 12 |
| Cutting feed | m/min | 0.1-5000 |
| X-axis motor power/torque | Kw/nm | 2.8/18 |
| Z-axis motor power/torque | Kw/nm | 3.5/22 |
| Spindle motor power/torque | Kw/nm | 30/37- 356 |
| External dimensions (length x width x height) | m | 2.5*2.25*3.15 |
| Machine tool weight | kg | 9500 |
