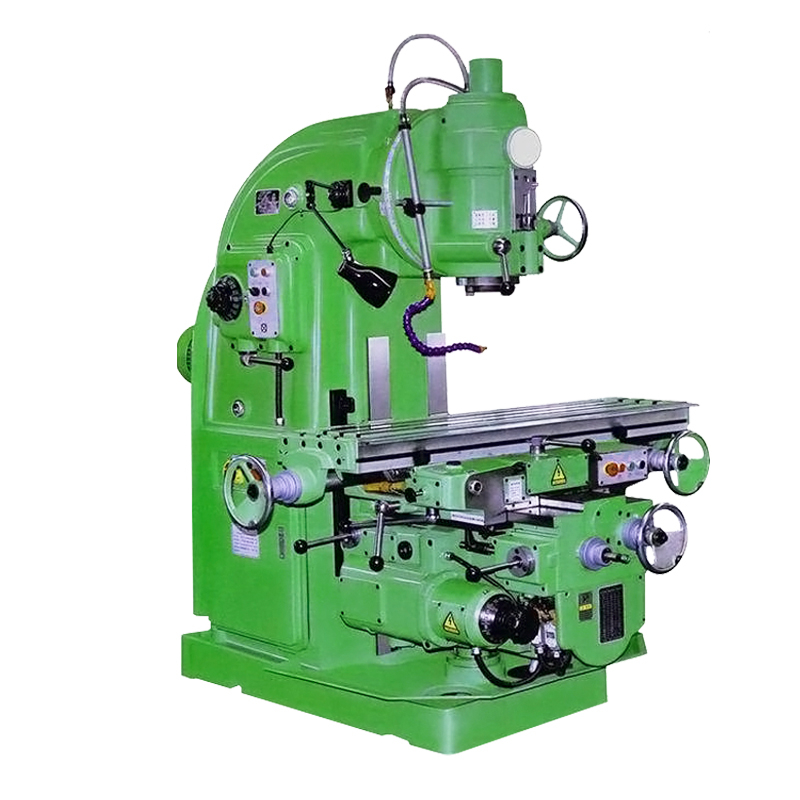

X5032
山东邦城科技有限公司
Technical parameters:
| model | unit | X5032 |
| Workbench size | mm | 1325×320 |
| Workbench load bearing | kg | 500 |
| T-shaped groove (quantity-width-spacing) | mm | 3-18-70 |
| Workbench itinerary | mm | 700/680 |
| 255/240 | ||
| 370/350 | ||
| Workbench feed range | mm /min | XY:23.5-1180 |
| Z:8-394 | ||
| Workbench moves quickly | mm /min | XY:2300 |
| Z:770 | ||
| Spindle taper | ISO50 7:24 | |
| Spindle speed range | rpm | 30-1500 (18 steps) |
| Maximum rotation angle of end milling head | ° | ±45 |
| Distance from the spindle end surface to the workbench | mm | 45-415 |
| Main motor power | kw | 7.5 |
| Feed motor power | kw | 1.5 |
| weight | kg | 2900/3200 |
| External dimensions | mm | 2300×1770×2000 |
