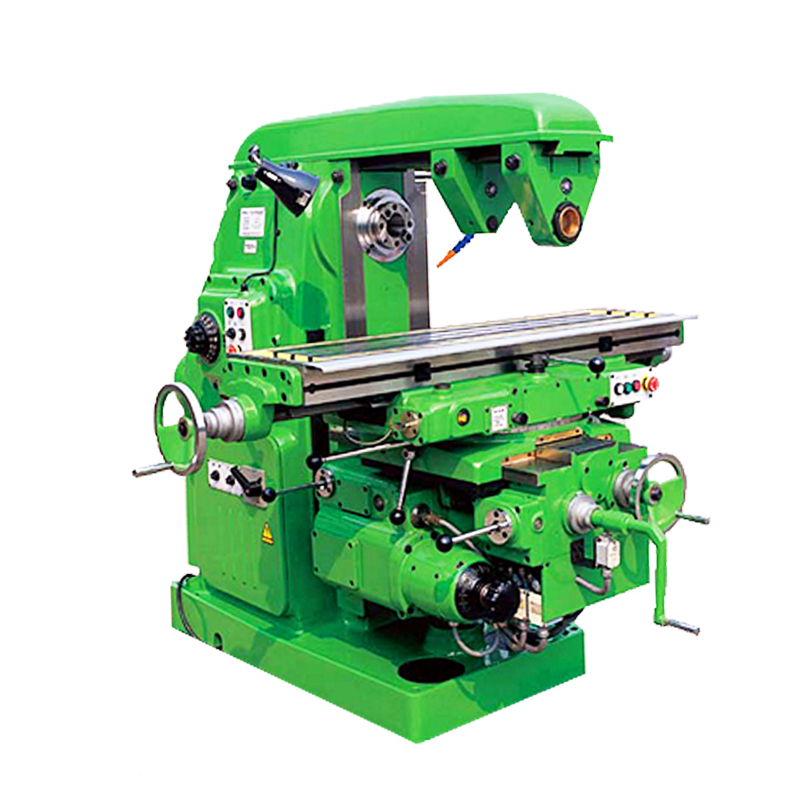

X6132
山东邦城科技有限公司
Technical parameters:
| model | unit | X6132 |
| Workbench size | mm | 1325*320 |
| Workbench load bearing | kg | 500 |
| T-shaped groove (quantity - width × spacing) | - | 3-18*70 |
| Workbench stroke (manual/motorized) | mm | 700/680 |
| 255/240 | ||
| 320/300 | ||
| Workbench feed range | mm /min | XY:23.5-1180 Z:8-394 |
| Workbench moves quickly | mm /min | XY:2300 Z:770 |
| Spindle taper | - | ISo50 7:24 |
| Spindle speed range (series) | rpm | 30-1500 (18) |
| Maximum rotation angle of workbench | ° | ±45 |
| Distance from the center of the spindle to the workbench | mm | 30-350 |
| Main motor power | kw | 7.5 |
| Feed motor power | kw | 1.5 |
| Machine tool weight | kg | 2700/3000 |
| External dimensions (length x width x height) | mm | 2300*1770*1700 |
Technical parameters:
| model | unit | X6132 |
| Workbench size | mm | 1325*320 |
| Workbench load bearing | kg | 500 |
| T-shaped groove (quantity - width × spacing) | - | 3-18*70 |
| Workbench stroke (manual/motorized) | mm | 700/680 |
| 255/240 | ||
| 320/300 | ||
| Workbench feed range | mm /min | XY:23.5-1180 Z:8-394 |
| Workbench moves quickly | mm /min | XY:2300 Z:770 |
| Spindle taper | - | ISo50 7:24 |
| Spindle speed range (series) | rpm | 30-1500 (18) |
| Maximum rotation angle of workbench | ° | ±45 |
| Distance from the center of the spindle to the workbench | mm | 30-350 |
| Main motor power | kw | 7.5 |
| Feed motor power | kw | 1.5 |
| Machine tool weight | kg | 2700/3000 |
| External dimensions (length x width x height) | mm | 2300*1770*1700 |
