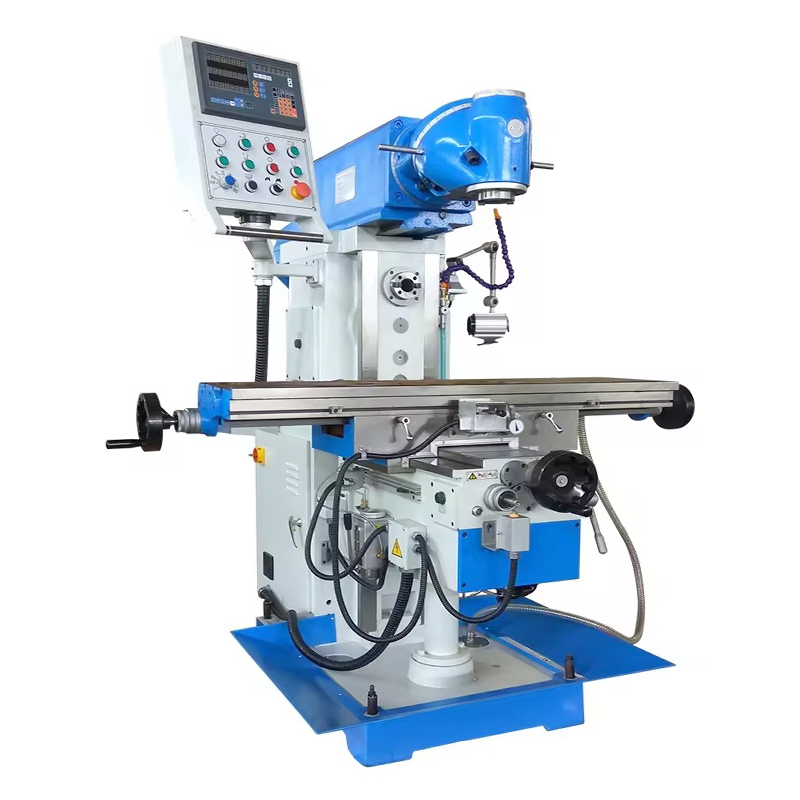

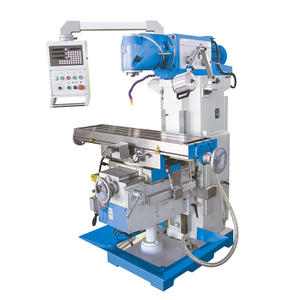

X6432
山东邦城科技有限公司
Technical parameters:
| model | unit | X6432 |
| Workbench size | mm | 1500x320 |
| Workbench itinerary | mm | 1000/320/400 |
| T-shaped slot number/width/pad | mm | 3-16-60 |
| Spindle taper | ISO40 (Standard V) | |
| ISO40 (H) | ||
| Spindle speed range | rpm | 48-1660rpm (Standard V) |
| 40-1300 (H) | ||
| Distance from the spindle end surface to the workbench | mm | 120-520 |
| Distance from the center of the horizontal axis to the workbench | mm | 0-400 |
| Workbench feed range | mm /min | XY:22-555 |
| Z:electric | ||
| Milling head rotation angle | ° | 360 |
| Main motor power | kw | 3(standing V)/3(lying H) |
| Feed motor power | kw | 1.1 |
| weight | kg | 2100 |
| External dimensions | mm | 2050x1750x2000 |
Technical parameters:
| model | unit | X6432 |
| Workbench size | mm | 1500x320 |
| Workbench itinerary | mm | 1000/320/400 |
| T-shaped slot number/width/pad | mm | 3-16-60 |
| Spindle taper | ISO40 (Standard V) | |
| ISO40 (H) | ||
| Spindle speed range | rpm | 48-1660rpm (Standard V) |
| 40-1300 (H) | ||
| Distance from the spindle end surface to the workbench | mm | 120-520 |
| Distance from the center of the horizontal axis to the workbench | mm | 0-400 |
| Workbench feed range | mm /min | XY:22-555 |
| Z:electric | ||
| Milling head rotation angle | ° | 360 |
| Main motor power | kw | 3(standing V)/3(lying H) |
| Feed motor power | kw | 1.1 |
| weight | kg | 2100 |
| External dimensions | mm | 2050x1750x2000 |
