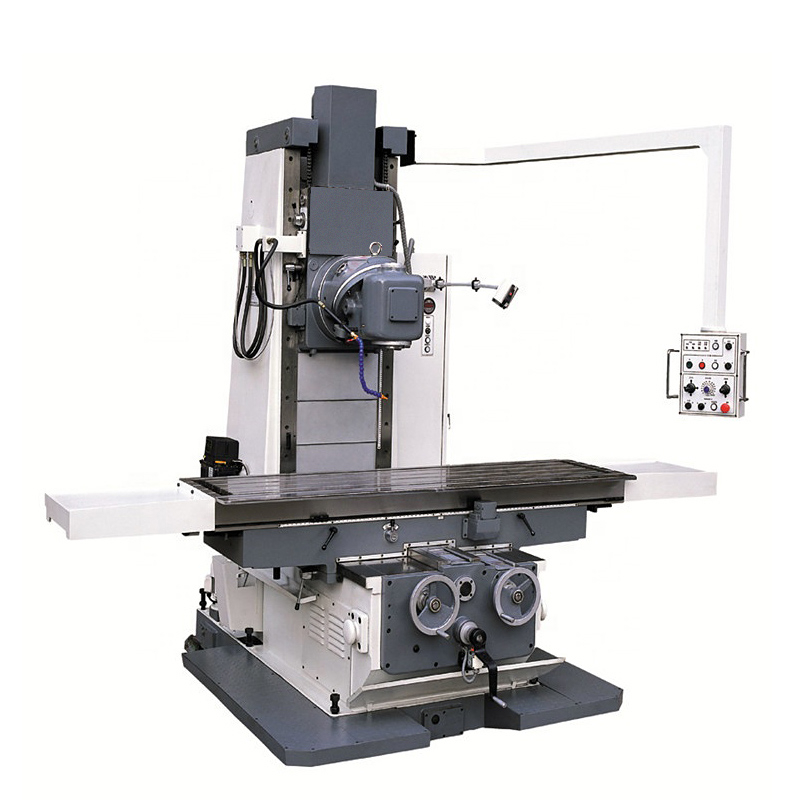

XA7140
山东邦城科技有限公司
Technical parameters:
| model | unit | XA7140 |
| Workbench size | mm | 1400*400 |
| Workbench itinerary | mm | 800*400 |
| T-shaped groove (quantity - width × spacing) | - | 3-18*100 |
| Spindle taper | - | ISo50 |
| Spindle stroke | mm | 105 |
| Spindle speed range | rpm | 18-1800 |
| Distance from the spindle end face to the workbench | mm | 150-650 |
| Distance from the center of the spindle to the column surface | mm | 520 |
| Main motor power | kw | 7.5 |
| Machine tool weight | Kg | 3860 |
| External dimensions (length x width x height) | mm | 2290*1840*2120 |
