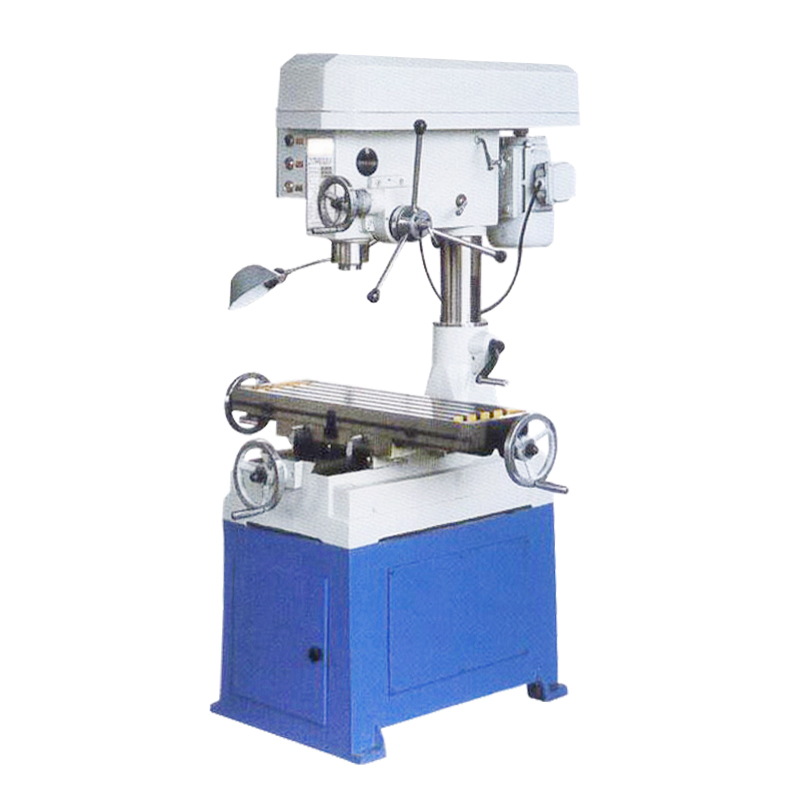

ZX16
山东邦城科技有限公司
Technical parameters:
| model | unit | ZX16 |
| Maximum diameter of drilling | mm | 16 |
| Maximum end milling width | mm | 30 |
| Maximum diameter of end mill | mm | 8 |
| Maximum tapping diameter | mm | - |
| Distance from the spindle end surface to the workbench | mm | 80-380 |
| Spindle speed range | rpm | 250-3200 |
| Spindle stroke | mm | 85 |
| Workbench size | mm | 420*160 |
| Workbench itinerary | mm | 250*120 |
| External dimensions | mm | 750*580*1100 |
| Motor power | kw | 0.75 |
| Machine tool weight kg | kg | 120/150 |
Technical parameters:
| model | unit | ZX16 |
| Maximum diameter of drilling | mm | 16 |
| Maximum end milling width | mm | 30 |
| Maximum diameter of end mill | mm | 8 |
| Maximum tapping diameter | mm | - |
| Distance from the spindle end surface to the workbench | mm | 80-380 |
| Spindle speed range | rpm | 250-3200 |
| Spindle stroke | mm | 85 |
| Workbench size | mm | 420*160 |
| Workbench itinerary | mm | 250*120 |
| External dimensions | mm | 750*580*1100 |
| Motor power | kw | 0.75 |
| Machine tool weight kg | kg | 120/150 |
