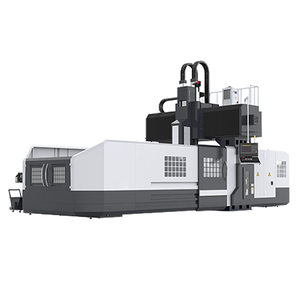

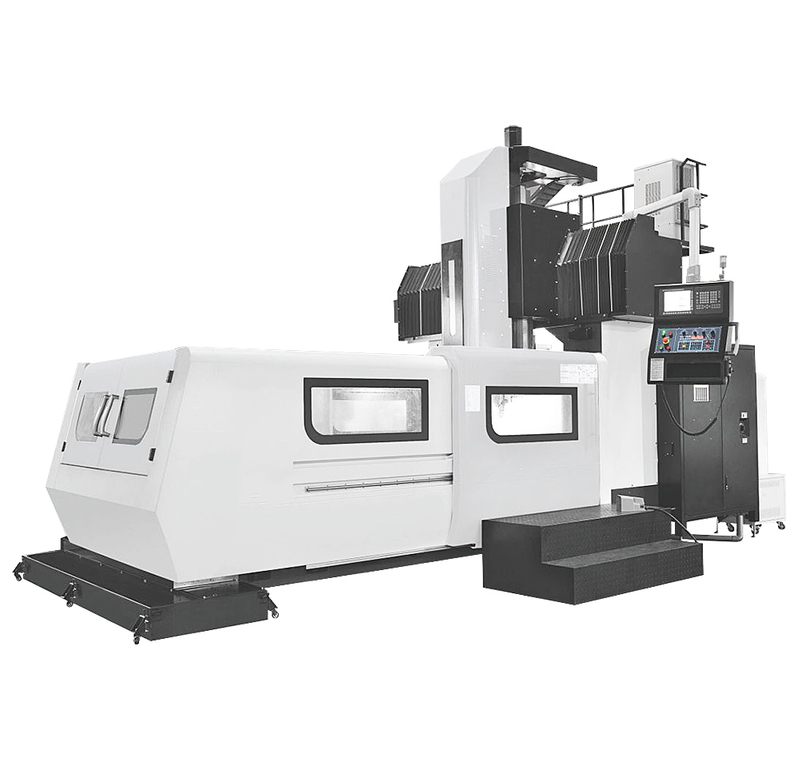

GMC4018
山东邦城科技有限公司
Technical parameters:
| model | GMC4018 |
| X-axis | 4000mm |
| Y-axis | 1800mm |
| Z-axis | 800mm |
| Spindle end face to workbench | 140-940mm |
| Center of the spindle to front of the column | 450mm |
| Distance between two columns | 1800mm |
| Distance from workbench to beam | 1200mm |
| Fast movement of X-axis | 10m/min |
| Y-axis moves quickly | 12m/min |
| Z-axis moving quickly | 12m/min |
| Cutting feed | 1-10m/min |
| Three-axis servo motor torque | X/Y/Z:40/30/30N.m |
| Workbench area | 4000×1600mm |
| Maximum load bearing | 3500Kg |
| Height from the ground | Approx 950mm |
| T-slot | 9×22mm |
| Connection form | belt |
| Maximum speed | 6000 rpm |
| Spindle conical hole | BT50 |
| Main motor power | 15KW |
| Positioning accuracy (JIS standard) | ±0.005/300mm |
| Repeat positioning accuracy (JIS standard) | ±0.003mm |
| weight | Approx 38000Kg |
| External dimensions | Approx 8500×3000×3400mm |
Technical parameters:
| model | GMC4018 |
| X-axis | 4000mm |
| Y-axis | 1800mm |
| Z-axis | 800mm |
| Spindle end face to workbench | 140-940mm |
| Center of the spindle to front of the column | 450mm |
| Distance between two columns | 1800mm |
| Distance from workbench to beam | 1200mm |
| Fast movement of X-axis | 10m/min |
| Y-axis moves quickly | 12m/min |
| Z-axis moving quickly | 12m/min |
| Cutting feed | 1-10m/min |
| Three-axis servo motor torque | X/Y/Z:40/30/30N.m |
| Workbench area | 4000×1600mm |
| Maximum load bearing | 3500Kg |
| Height from the ground | Approx 950mm |
| T-slot | 9×22mm |
| Connection form | belt |
| Maximum speed | 6000 rpm |
| Spindle conical hole | BT50 |
| Main motor power | 15KW |
| Positioning accuracy (JIS standard) | ±0.005/300mm |
| Repeat positioning accuracy (JIS standard) | ±0.003mm |
| weight | Approx 38000Kg |
| External dimensions | Approx 8500×3000×3400mm |
