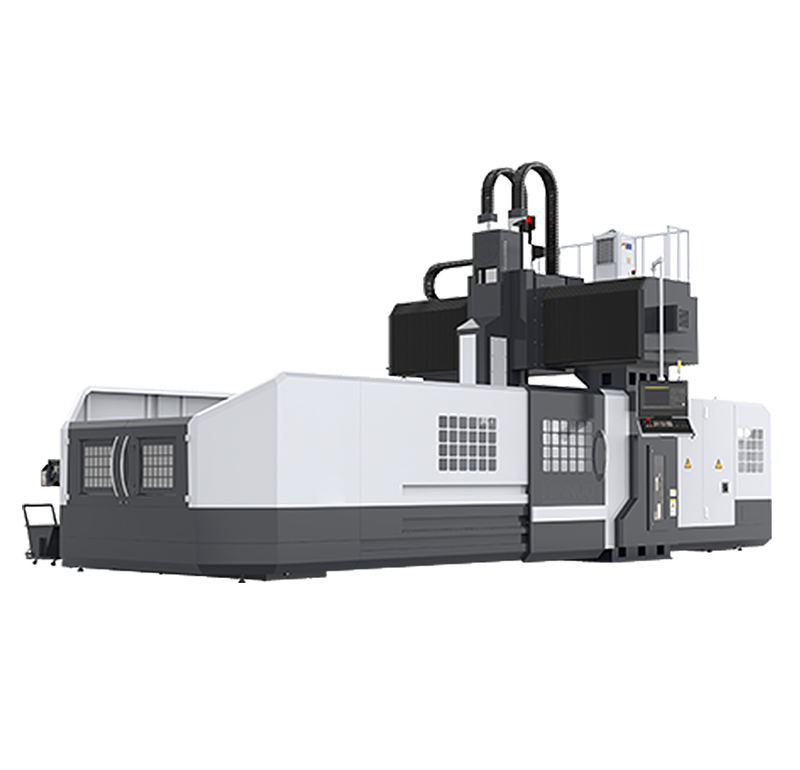

XK(H)2312/2314
山东邦城科技有限公司
Technical parameters:
| model | unit | XK(H)2312 | XK(H)2314 |
| Workbench size (width x length) | mm | 1200x2100 | 1000x2000 |
| Maximum load bearing of workbench | kg | 2500 | 2500 |
| Gantry width | mm | 1600 | 1600 |
| Workbench T-shaped groove (number/width/pad) | mm | 7-22x170 | 7-22x180 |
| Workbench movement direction stroke | mm | 2100 | 2100 |
| Spindle slide movement direction | mm | 1600 | 1600 |
| Spindle up and downward movement direction | mm | 800 | 800 |
| Distance from the spindle end surface to the table | mm | 115-915 | 115-915 |
| Spindle specifications (model/mounting diameter) | mm | BT50-φ190 | BT50-φ190 |
| Spindle speed | r/min | 6000 | 6000 |
| XY axis moves quickly | mm/min | 10000 | 10000 |
| Z-axis moving quickly | mm/min | 6000 | 6000 |
| XYZ feed speed | mm/min | 5-5000 | 5-5000 |
| Spindle motor power | KW | 22 | 22 |
| X/Y axis guide rail | 55 specification sliding guide | 55 specification sliding guide | |
| Z-axis guide rail | Sliding guide rail | Sliding guide rail | |
| Machine tool weight | T | 25 | 27 |
Technical parameters:
| model | unit | XK(H)2312 | XK(H)2314 |
| Workbench size (width x length) | mm | 1200x2100 | 1000x2000 |
| Maximum load bearing of workbench | kg | 2500 | 2500 |
| Gantry width | mm | 1600 | 1600 |
| Workbench T-shaped groove (number/width/pad) | mm | 7-22x170 | 7-22x180 |
| Workbench movement direction stroke | mm | 2100 | 2100 |
| Spindle slide movement direction | mm | 1600 | 1600 |
| Spindle up and downward movement direction | mm | 800 | 800 |
| Distance from the spindle end surface to the table | mm | 115-915 | 115-915 |
| Spindle specifications (model/mounting diameter) | mm | BT50-φ190 | BT50-φ190 |
| Spindle speed | r/min | 6000 | 6000 |
| XY axis moves quickly | mm/min | 10000 | 10000 |
| Z-axis moving quickly | mm/min | 6000 | 6000 |
| XYZ feed speed | mm/min | 5-5000 | 5-5000 |
| Spindle motor power | KW | 22 | 22 |
| X/Y axis guide rail | 55 specification sliding guide | 55 specification sliding guide | |
| Z-axis guide rail | Sliding guide rail | Sliding guide rail | |
| Machine tool weight | T | 25 | 27 |
