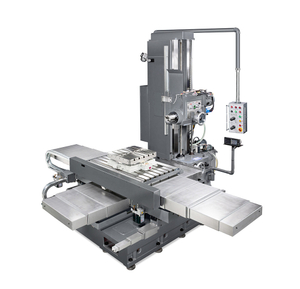

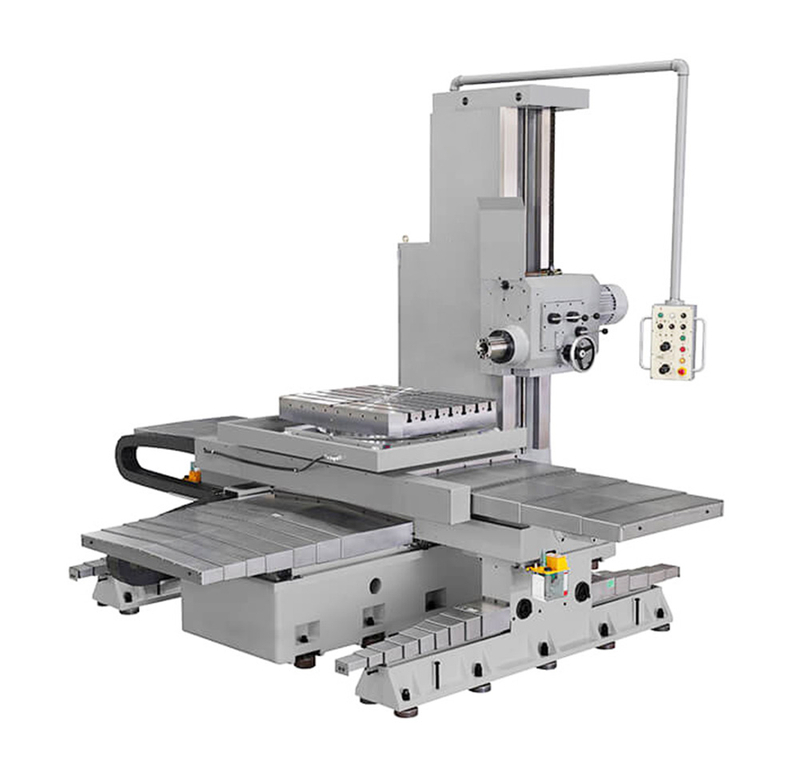

T7220
山东邦城科技有限公司
Technical parameters:
| Specifications and models | T7220 | |
| Boring range | Φ35-φ200 | |
| Maximum movement of the carriage | 710mm | |
| Distance from the center line of the spindle to the carriage | 315mm | |
| Spindle speed | Low speed motor | 70.100.280.400 |
| Motor high speed | 140.280.560.800 | |
| Feed per turn of the host | 0.05, 0.08, 0.125, 0.20 | |
| Carriage moving speed | 3200mm/min | |
| Workbench moves fast | 1500mm/min | |
| Workbench feed range | 19 29 77 128mm/min | |
| Work surface dimensions (length*width) | 1200*500mm | |
| Workbench vertical stroke | 900mm | |
| Workbench horizontal itinerary | 100mm | |
| Main motor | 2.4kw | |
| Fast motor | 0.75kw | |
| Dimensions (length*width*height) | 2000*1610*2422mm | |
| Net weight of the machine tool | 3800kg | |
Technical parameters:
| Specifications and models | T7220 | |
| Boring range | Φ35-φ200 | |
| Maximum movement of the carriage | 710mm | |
| Distance from the center line of the spindle to the carriage | 315mm | |
| Spindle speed | Low speed motor | 70.100.280.400 |
| Motor high speed | 140.280.560.800 | |
| Feed per turn of the host | 0.05, 0.08, 0.125, 0.20 | |
| Carriage moving speed | 3200mm/min | |
| Workbench moves fast | 1500mm/min | |
| Workbench feed range | 19 29 77 128mm/min | |
| Work surface dimensions (length*width) | 1200*500mm | |
| Workbench vertical stroke | 900mm | |
| Workbench horizontal itinerary | 100mm | |
| Main motor | 2.4kw | |
| Fast motor | 0.75kw | |
| Dimensions (length*width*height) | 2000*1610*2422mm | |
| Net weight of the machine tool | 3800kg | |
