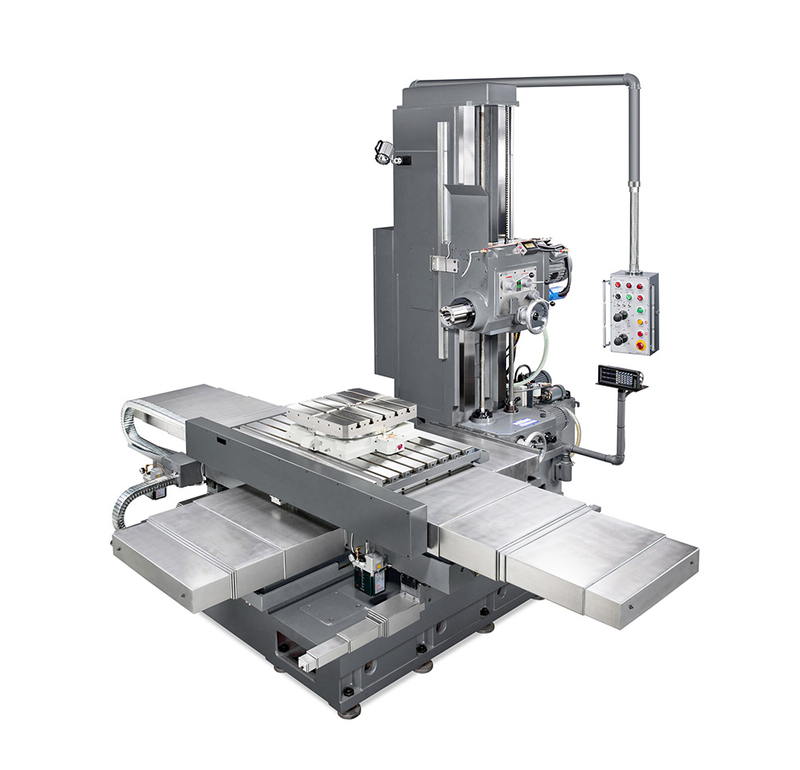

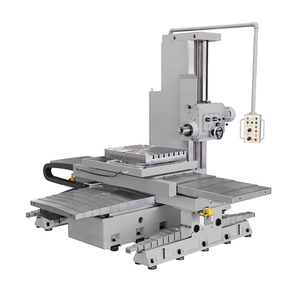

T8018A
山东邦城科技有限公司
Technical parameters:
| model | unit | T8018A | |
| Boring diameter range | mm | Ф58— Ф180 | |
| Maximum boring depth | mm | 450 | |
| Maximum spindle movement | mm | 500 | |
| Distance from the center line of the spindle to the fuselage | mm | 320 | |
| Spindle speed | r/min | Stepless speed regulation | |
| Spindle feed | mm/r | 0.05, 0.10, 0.20 | |
| Spindle fast shift speed | m/min | 2.65 | |
| Workbench size length x width | mm | 1200×500 | |
| Workbench movement | Horizontal | mm | 100 |
| Vertical | mm | 800 | |
| Workbench manual | mm/r | 5 | |
| Workbench height | mm | 550 | |
| Main motor | YD112M—4B3 4Kw | ||
| Fast motor | Y802--4B5 0.75Kw | ||
| Dimensions: Length×width×height | mm | 1300×1235×1920 | |
| Packing box size length x width x height | mm | 1400×1400×2250 | |
| Machine weight | T | 1.8 | |
Technical parameters:
| model | unit | T8018A | |
| Boring diameter range | mm | Ф58— Ф180 | |
| Maximum boring depth | mm | 450 | |
| Maximum spindle movement | mm | 500 | |
| Distance from the center line of the spindle to the fuselage | mm | 320 | |
| Spindle speed | r/min | Stepless speed regulation | |
| Spindle feed | mm/r | 0.05, 0.10, 0.20 | |
| Spindle fast shift speed | m/min | 2.65 | |
| Workbench size length x width | mm | 1200×500 | |
| Workbench movement | Horizontal | mm | 100 |
| Vertical | mm | 800 | |
| Workbench manual | mm/r | 5 | |
| Workbench height | mm | 550 | |
| Main motor | YD112M—4B3 4Kw | ||
| Fast motor | Y802--4B5 0.75Kw | ||
| Dimensions: Length×width×height | mm | 1300×1235×1920 | |
| Packing box size length x width x height | mm | 1400×1400×2250 | |
| Machine weight | T | 1.8 | |
