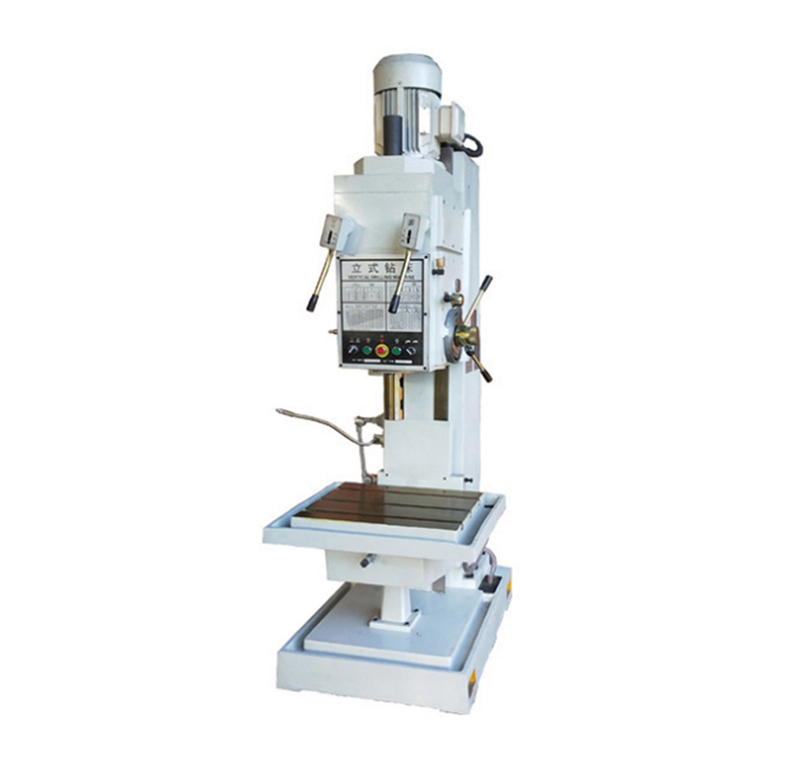

Z5132
山东邦城科技有限公司
Technical parameters:
| model | unit | Z5132 |
| Maximum drilling diameter | mm | 32 |
| Maximum feed resistance | N | 12000 |
| Maximum torque allowed for spindle | Nm | 200 |
| Spindle taper | - | MT4 |
| Spindle stroke | mm | 200 |
| Distance between the spindle end face and the workbench surface | mm | 710 |
| Distance from the center of the spindle to the column surface | mm | 280 |
| Spindle box stroke | mm | 200 |
| Spindle speed range | rpm | 50-2000 |
| Spindle rotation series | - | 9 |
| Spindle feed range | mm/r | 0.056-1.8 |
| Spindle feed series | - | 9 |
| Workbench size | mm | 550*400 |
| Workbench itinerary | mm | 310 |
| Main motor power | kw | 2.2 |
| Cooling motor power | kw | 0.09 |
| Machine tool weight | kg | 1150 |
| External dimensions (length x width x height) | mm | 980*807*2302 |
Technical parameters:
| model | unit | Z5132 |
| Maximum drilling diameter | mm | 32 |
| Maximum feed resistance | N | 12000 |
| Maximum torque allowed for spindle | Nm | 200 |
| Spindle taper | - | MT4 |
| Spindle stroke | mm | 200 |
| Distance between the spindle end face and the workbench surface | mm | 710 |
| Distance from the center of the spindle to the column surface | mm | 280 |
| Spindle box stroke | mm | 200 |
| Spindle speed range | rpm | 50-2000 |
| Spindle rotation series | - | 9 |
| Spindle feed range | mm/r | 0.056-1.8 |
| Spindle feed series | - | 9 |
| Workbench size | mm | 550*400 |
| Workbench itinerary | mm | 310 |
| Main motor power | kw | 2.2 |
| Cooling motor power | kw | 0.09 |
| Machine tool weight | kg | 1150 |
| External dimensions (length x width x height) | mm | 980*807*2302 |
