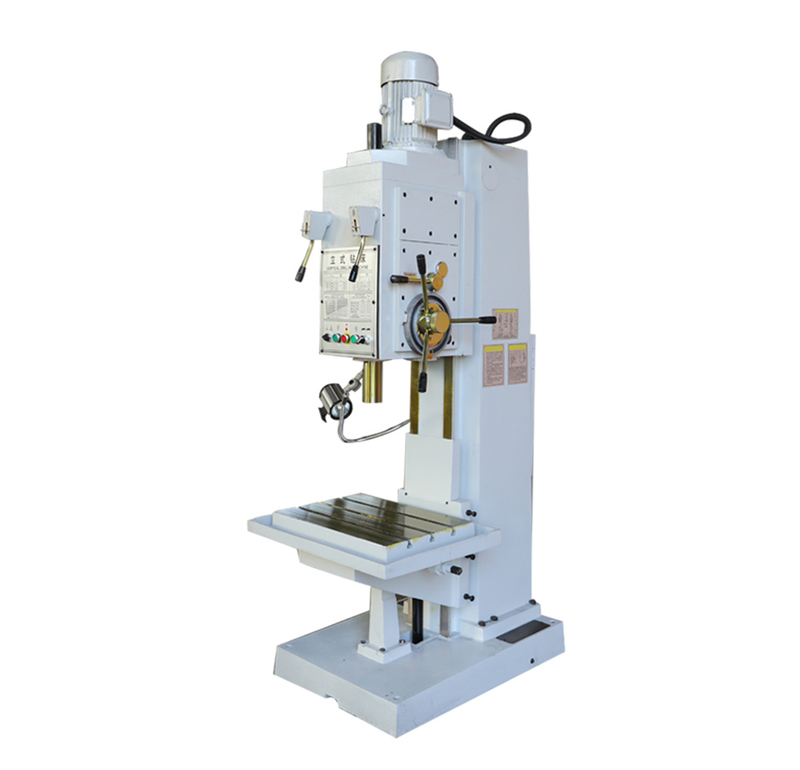

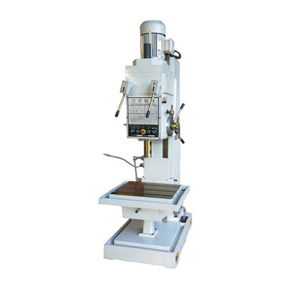

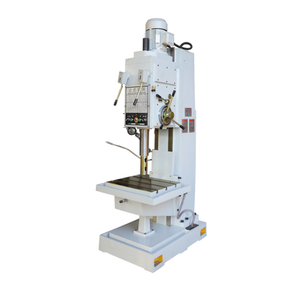

Z5150
山东邦城科技有限公司
Technical parameters:
| model | unit | Z5150B |
| Maximum drilling diameter | mm | 50 |
| Maximum feed resistance | N | 16000 |
| Maximum torque allowed for spindle | Nm | 350 |
| Spindle taper | - | MT5 |
| Spindle stroke | mm | 250 |
| Distance between the spindle end face and the workbench surface | mm | 750 |
| Distance from the center of the spindle to the column surface | mm | 350 |
| Spindle box stroke | mm | 200 |
| Spindle speed range | rpm | 31.5-1400 |
| Spindle rotation series | - | 12 |
| Spindle feed range | mm/r | 0.056-1.8 |
| Spindle feed series | - | 9 |
| Workbench size | mm | 560*480 |
| Workbench itinerary | mm | 300 |
| Main motor power | kw | 3 |
| Cooling motor power | kw | 0.09 |
| Machine tool weight | kg | 1350 |
| External dimensions (length x width x height) | mm | 1090*900*2530 |
Technical parameters:
| model | unit | Z5150B |
| Maximum drilling diameter | mm | 50 |
| Maximum feed resistance | N | 16000 |
| Maximum torque allowed for spindle | Nm | 350 |
| Spindle taper | - | MT5 |
| Spindle stroke | mm | 250 |
| Distance between the spindle end face and the workbench surface | mm | 750 |
| Distance from the center of the spindle to the column surface | mm | 350 |
| Spindle box stroke | mm | 200 |
| Spindle speed range | rpm | 31.5-1400 |
| Spindle rotation series | - | 12 |
| Spindle feed range | mm/r | 0.056-1.8 |
| Spindle feed series | - | 9 |
| Workbench size | mm | 560*480 |
| Workbench itinerary | mm | 300 |
| Main motor power | kw | 3 |
| Cooling motor power | kw | 0.09 |
| Machine tool weight | kg | 1350 |
| External dimensions (length x width x height) | mm | 1090*900*2530 |
