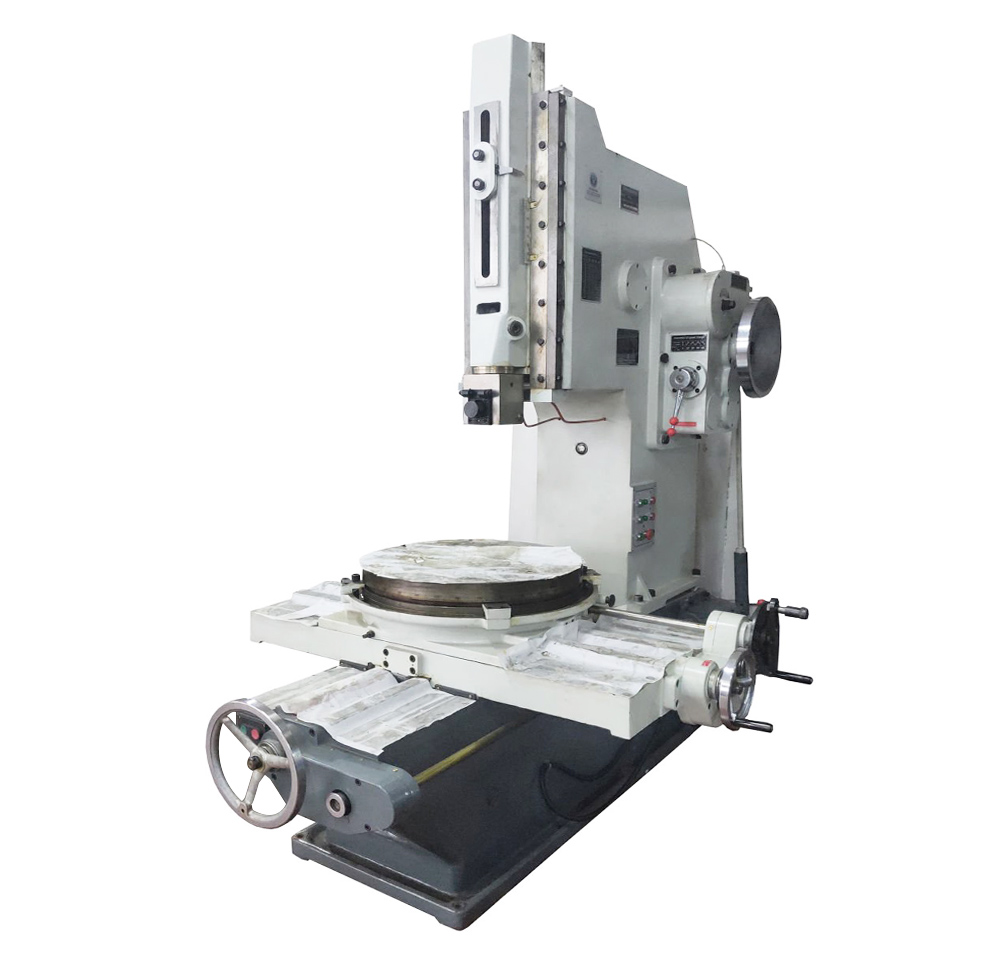

B5032
山东邦城科技有限公司
Technical parameters:
| model | B5032 |
| Sliding pillow stroke | 340mm |
| Latch length | 320mm |
| Workpiece processing dimensions (length x width) | 600×320mm |
| Workpiece weight | 500kg |
| Cutting force | 7500N |
| Number of times reciprocates per minute | 20,32,50,80 rpm |
| Sliding pillow vertical distance adjustment | 315mm |
| Sliding pillow angle | 0-8° |
| Distance between the blade support surface and the front wall of the bed | 600mm |
| Size of insertion knife (length x width) | 25×40mm |
| Workbench diameter | 630mm |
| Distance between work surface and lower end of carriage | 490mm |
| Longitudinal movement distance of workbench (motor/manual) | 480/620mm |
| Workbench lateral movement distance (motor/manual) | 480/560mm |
| Workbench vertical and horizontal maneuver feed range | 0.08-1.21mm |
| Workbench slewing feed range | 0.052-0.783mm |
| Main motor power | 4KW |
| Machine tool profile size (length x width x height) | 2261×1495×2245mm |
| Machine tool weight (approximately) | 3000kg |
Technical parameters:
| model | B5032 |
| Sliding pillow stroke | 340mm |
| Latch length | 320mm |
| Workpiece processing dimensions (length x width) | 600×320mm |
| Workpiece weight | 500kg |
| Cutting force | 7500N |
| Number of times reciprocates per minute | 20,32,50,80 rpm |
| Sliding pillow vertical distance adjustment | 315mm |
| Sliding pillow angle | 0-8° |
| Distance between the blade support surface and the front wall of the bed | 600mm |
| Size of insertion knife (length x width) | 25×40mm |
| Workbench diameter | 630mm |
| Distance between work surface and lower end of carriage | 490mm |
| Longitudinal movement distance of workbench (motor/manual) | 480/620mm |
| Workbench lateral movement distance (motor/manual) | 480/560mm |
| Workbench vertical and horizontal maneuver feed range | 0.08-1.21mm |
| Workbench slewing feed range | 0.052-0.783mm |
| Main motor power | 4KW |
| Machine tool profile size (length x width x height) | 2261×1495×2245mm |
| Machine tool weight (approximately) | 3000kg |
