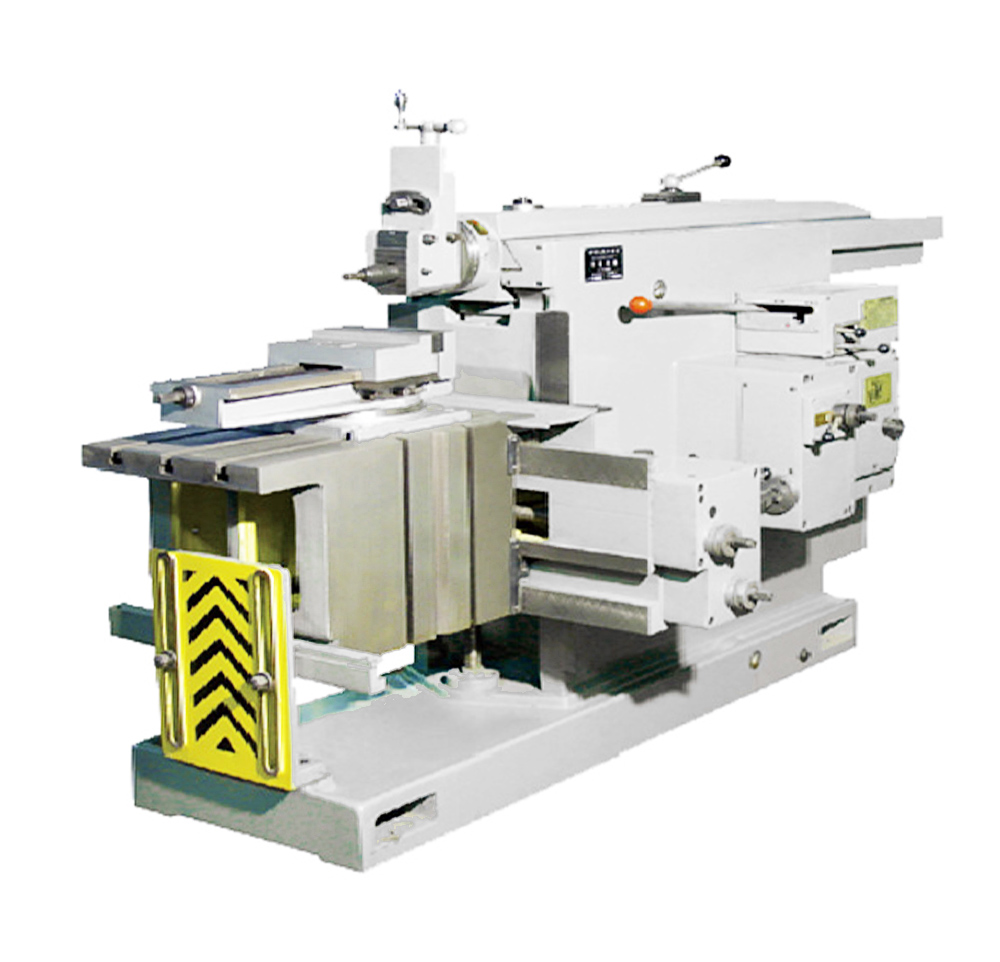

B6085
山东邦城科技有限公司
Technical parameters:
| Machine tool model | B6085 | |
| Larger planing length mm | 850 | |
| The distance from the bottom of the sliding pillow to the work surface is larger mm | 400 | |
| Workbench has a larger lateral movement distance mm | 710 | |
| Workbench has a larger vertical movement distance mm | 360 | |
| Working surface size on the workbench mm | 800×450 | |
| Knife holder stroke mm | 160 | |
| Number of times reciprocates per minute | 17, 24, 35, 50, 70, 100 | |
| Workbench motor feed range | Horizontal feed mm | 0.25～3 Level 12 |
| Vertical feed mm | Level 0.12～1.5 Level 12 | |
| Main motor power kW | 5.5 | |
| External dimensions mm | 2950×1325×1693 | |
| Weight kg | 3050 | |
Technical parameters:
| Machine tool model | B6085 | |
| Larger planing length mm | 850 | |
| The distance from the bottom of the sliding pillow to the work surface is larger mm | 400 | |
| Workbench has a larger lateral movement distance mm | 710 | |
| Workbench has a larger vertical movement distance mm | 360 | |
| Working surface size on the workbench mm | 800×450 | |
| Knife holder stroke mm | 160 | |
| Number of times reciprocates per minute | 17, 24, 35, 50, 70, 100 | |
| Workbench motor feed range | Horizontal feed mm | 0.25～3 Level 12 |
| Vertical feed mm | Level 0.12～1.5 Level 12 | |
| Main motor power kW | 5.5 | |
| External dimensions mm | 2950×1325×1693 | |
| Weight kg | 3050 | |
