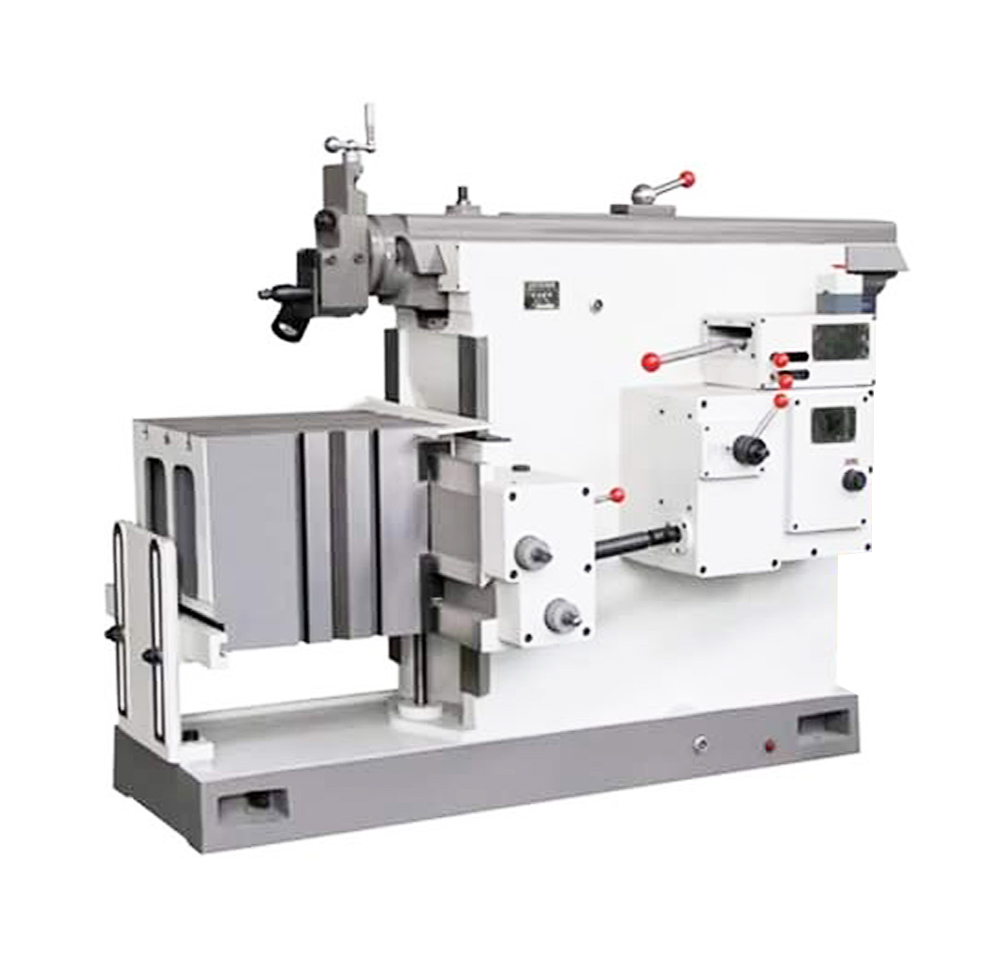

B6066
山东邦城科技有限公司
Technical parameters:
| Machine tool model | B6066 | |
| Larger planing length mm | 660 | |
| The distance from the bottom of the sliding pillow to the work surface is larger mm | 385 | |
| Workbench has a larger lateral movement distance mm | 630 | |
| Workbench has a larger vertical movement distance mm | 360 | |
| Working surface size on the workbench mm | 660×400 | |
| Knife holder stroke mm | 120 | |
| Number of times reciprocates per minute | 14, 20, 28, 40, 56, 80 | |
| Workbench motor feed range | Horizontal feed mm | Level 0.2～2.5 Level 12 |
| Vertical feed mm | 0.08～1.00 Level 12 | |
| Main motor power kW | 3 | |
| External dimensions mm | 2357×1225×1480 | |
| Weight kg | 1920 | |
Technical parameters:
| Machine tool model | B6066 | |
| Larger planing length mm | 660 | |
| The distance from the bottom of the sliding pillow to the work surface is larger mm | 385 | |
| Workbench has a larger lateral movement distance mm | 630 | |
| Workbench has a larger vertical movement distance mm | 360 | |
| Working surface size on the workbench mm | 660×400 | |
| Knife holder stroke mm | 120 | |
| Number of times reciprocates per minute | 14, 20, 28, 40, 56, 80 | |
| Workbench motor feed range | Horizontal feed mm | Level 0.2～2.5 Level 12 |
| Vertical feed mm | 0.08～1.00 Level 12 | |
| Main motor power kW | 3 | |
| External dimensions mm | 2357×1225×1480 | |
| Weight kg | 1920 | |
