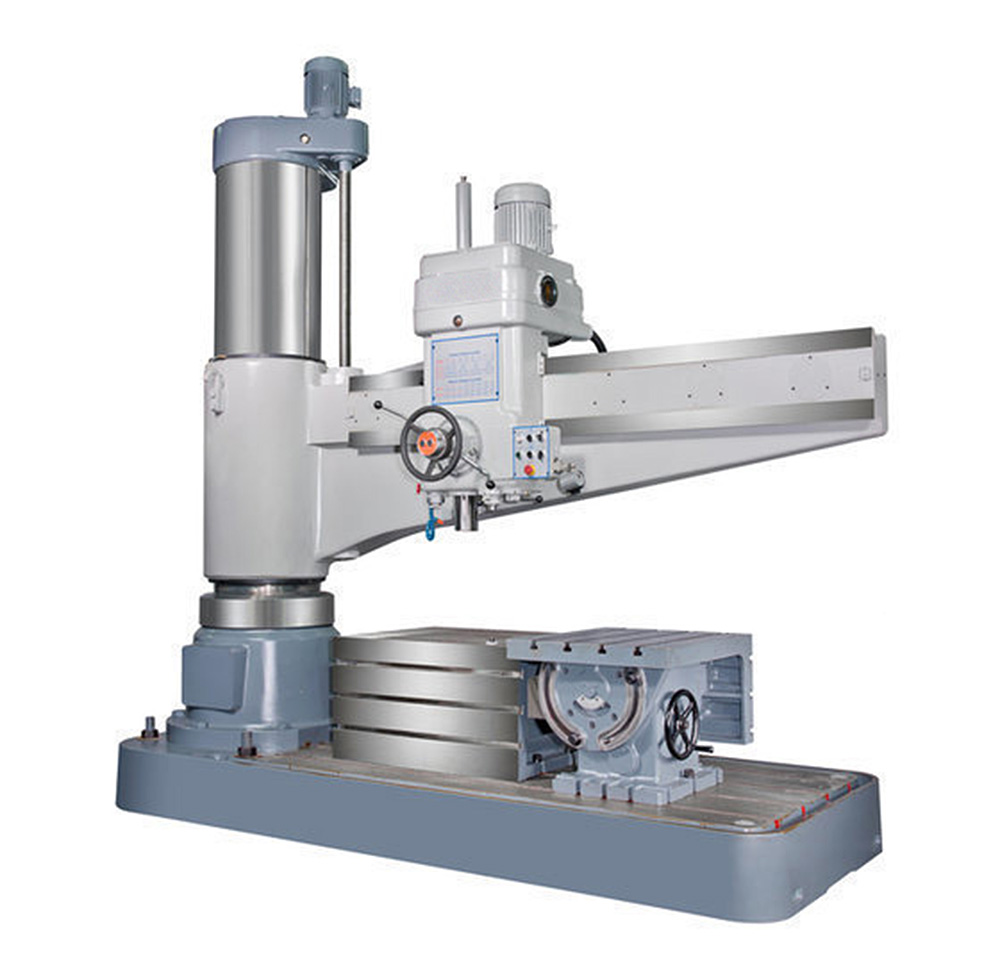

Z30125
山东邦城科技有限公司
Technical parameters:
| model | unit | Z30125x40 |
| Large drilling diameter | mm | 125 |
| Distance between the spindle end face and the workbench surface | mm | 750-2500 |
| Distance from the center of the spindle to the column surface | mm | 600-4000 |
| Spindle stroke | mm | 560 |
| Spindle taper | - | Metric 80 |
| Spindle speed range | rpm | 6.3-800 |
| Spindle speed stage | - | 22 |
| Spindle feed range | mm/r | 0.06-3.2 |
| Spindle feed series | - | 16 |
| Main motor power | kw | 18.5 |
| Lifting motor power | kw | 1250 |
| Machine tool weight | kg | 28500 |
| Dimensions (length x width x height | mm | 4960*2000*4780 |
Technical parameters:
| model | unit | Z30125x40 |
| Large drilling diameter | mm | 125 |
| Distance between the spindle end face and the workbench surface | mm | 750-2500 |
| Distance from the center of the spindle to the column surface | mm | 600-4000 |
| Spindle stroke | mm | 560 |
| Spindle taper | - | Metric 80 |
| Spindle speed range | rpm | 6.3-800 |
| Spindle speed stage | - | 22 |
| Spindle feed range | mm/r | 0.06-3.2 |
| Spindle feed series | - | 16 |
| Main motor power | kw | 18.5 |
| Lifting motor power | kw | 1250 |
| Machine tool weight | kg | 28500 |
| Dimensions (length x width x height | mm | 4960*2000*4780 |
