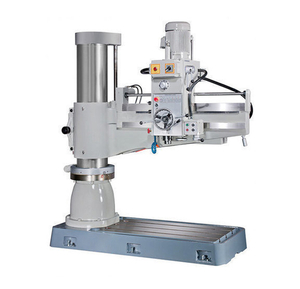

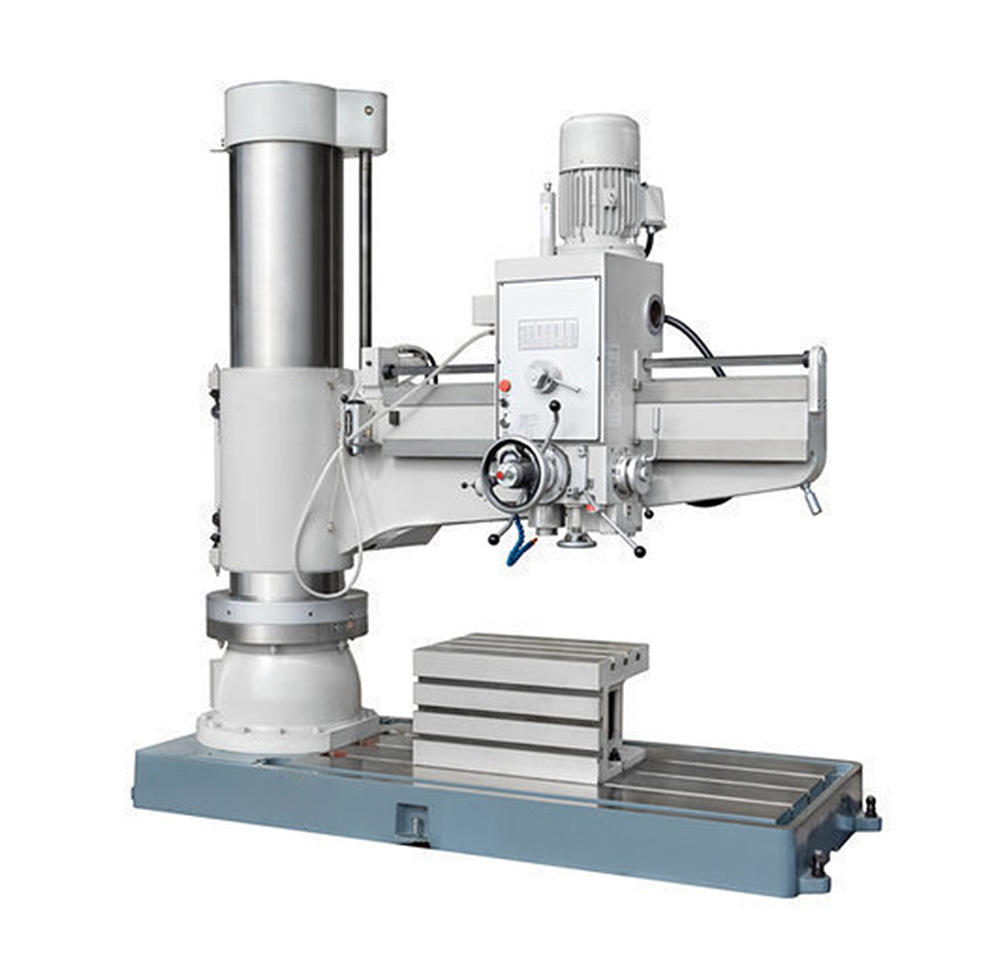

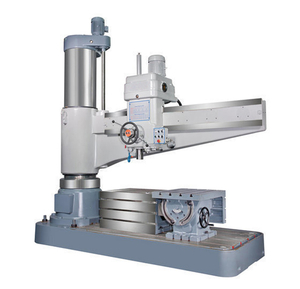

Z3050
山东邦城科技有限公司
Technical parameters:
| Specification | unit | Z3050 |
| Large drilling diameter | mm | 50 |
| Distance from the spindle end surface to the work surface | mm | 350-1600 |
| Distance from the spindle axis to the column surface | mm | 320-1220 |
| Spindle stroke | mm | 315 |
| Spindle taper | MT | 5 |
| Spindle speed range | rp m | 25-2000 |
| Spindle speed stage | 16 | |
| Spindle feed range | mm/r | 0.04/3.2 |
| Spindle level | 16 | |
| Rocker rotation angle | ° | ±180° |
| Main motor power | KW | 4 |
| Lifting motor power | KW | 1.5 |
| weight | kg | 3500 |
| External dimensions | mm | 2500×1060×2800 |
Technical parameters:
| Specification | unit | Z3050 |
| Large drilling diameter | mm | 50 |
| Distance from the spindle end surface to the work surface | mm | 350-1600 |
| Distance from the spindle axis to the column surface | mm | 320-1220 |
| Spindle stroke | mm | 315 |
| Spindle taper | MT | 5 |
| Spindle speed range | rp m | 25-2000 |
| Spindle speed stage | 16 | |
| Spindle feed range | mm/r | 0.04/3.2 |
| Spindle level | 16 | |
| Rocker rotation angle | ° | ±180° |
| Main motor power | KW | 4 |
| Lifting motor power | KW | 1.5 |
| weight | kg | 3500 |
| External dimensions | mm | 2500×1060×2800 |
