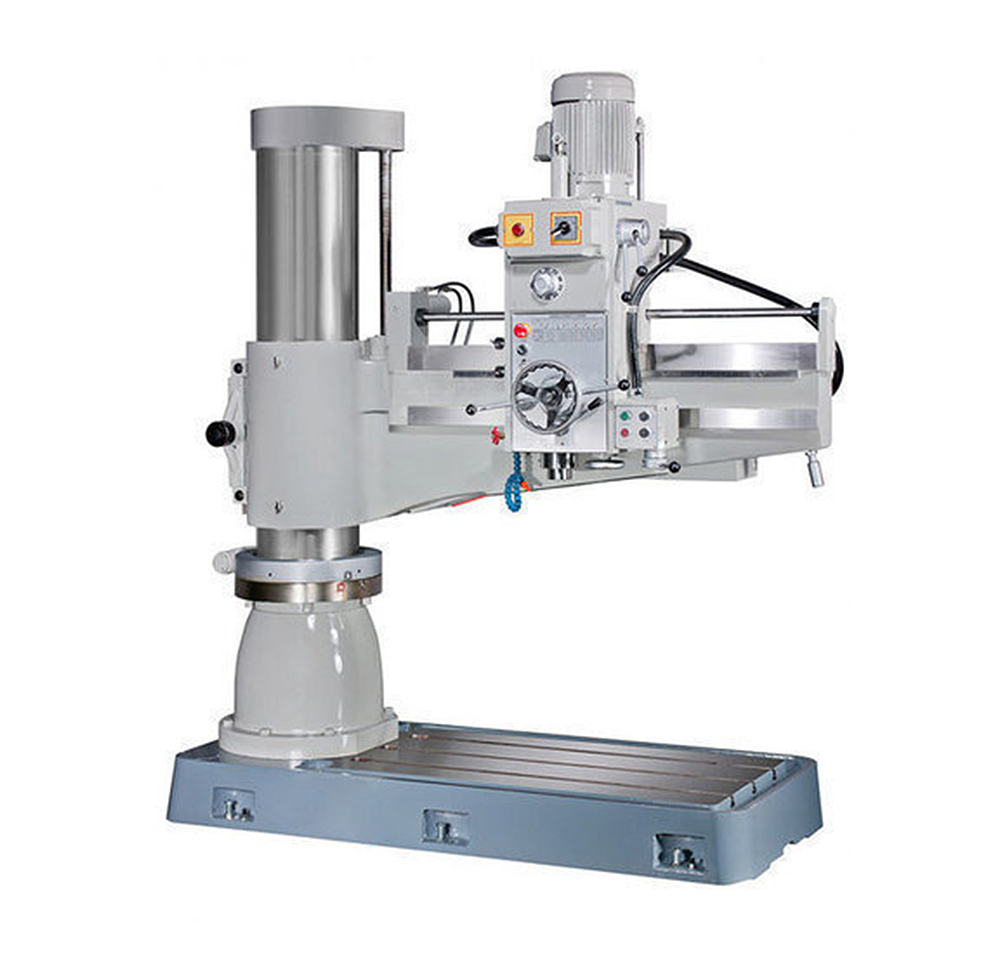

Z3080
山东邦城科技有限公司
Technical parameters:
| model | unit | Z3080 |
| Large drilling diameter | mm | 80 |
| Distance between the spindle end face and the workbench surface | mm | 350-1585 |
| Distance from the center of the spindle to the column surface | mm | 500-2070 |
| Spindle stroke | mm | 400 |
| Spindle taper | - | MT6 |
| Spindle speed range | rpm | 16-1250 |
| Spindle speed stage | - | 16 |
| Spindle feed range | mm/r | 0.04-3.20 |
| Spindle feed series | - | 16 |
| Main motor power | kw | 7.5 |
| Lifting motor power | kw | 1.5 |
| Machine tool weight | kg | 7000 |
| Dimensions (length x width x height | mm | 3000*1250*3300 |
Technical parameters:
| model | unit | Z3080 |
| Large drilling diameter | mm | 80 |
| Distance between the spindle end face and the workbench surface | mm | 350-1585 |
| Distance from the center of the spindle to the column surface | mm | 500-2070 |
| Spindle stroke | mm | 400 |
| Spindle taper | - | MT6 |
| Spindle speed range | rpm | 16-1250 |
| Spindle speed stage | - | 16 |
| Spindle feed range | mm/r | 0.04-3.20 |
| Spindle feed series | - | 16 |
| Main motor power | kw | 7.5 |
| Lifting motor power | kw | 1.5 |
| Machine tool weight | kg | 7000 |
| Dimensions (length x width x height | mm | 3000*1250*3300 |
