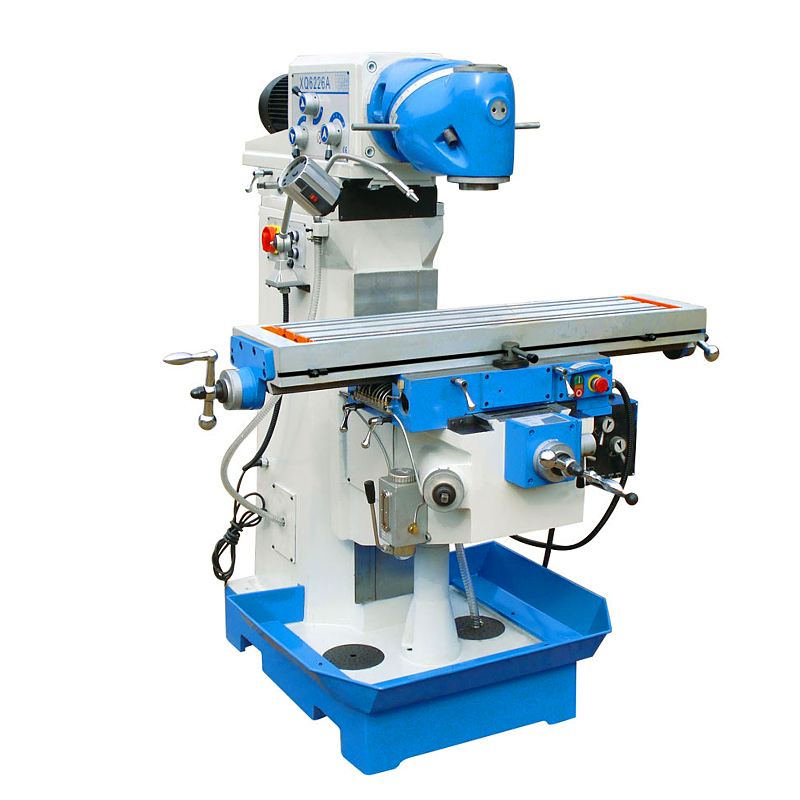

X6226
山东邦城科技有限公司
Technical parameters:
| Main technical parameters | unit | X6226 |
| Workbench size | mm | 1200x260 |
| Workbench itinerary | mm | 600/280/400 |
| T-shaped slot number/width/pad | mm | 5-14-40 |
| Spindle taper | ISO40 | |
| Spindle speed range | rpm | 48-1660rpm |
| Distance from the spindle end surface to the workbench | mm | 100-500 |
| Distance from the center of the horizontal axis to the workbench | mm | - |
| Workbench feed range | mm /min | X:48-370 |
| YZ: manual | ||
| Milling head rotation angle | ° | 360 |
| Main motor power | kw | 3 |
| Feed motor power | kw | 0.75 |
| weight | kg | 1400 |
| External dimensions | mm | 1660x1500x1750 |
Technical parameters:
| Main technical parameters | unit | X6226 |
| Workbench size | mm | 1200x260 |
| Workbench itinerary | mm | 600/280/400 |
| T-shaped slot number/width/pad | mm | 5-14-40 |
| Spindle taper | ISO40 | |
| Spindle speed range | rpm | 48-1660rpm |
| Distance from the spindle end surface to the workbench | mm | 100-500 |
| Distance from the center of the horizontal axis to the workbench | mm | - |
| Workbench feed range | mm /min | X:48-370 |
| YZ: manual | ||
| Milling head rotation angle | ° | 360 |
| Main motor power | kw | 3 |
| Feed motor power | kw | 0.75 |
| weight | kg | 1400 |
| External dimensions | mm | 1660x1500x1750 |
