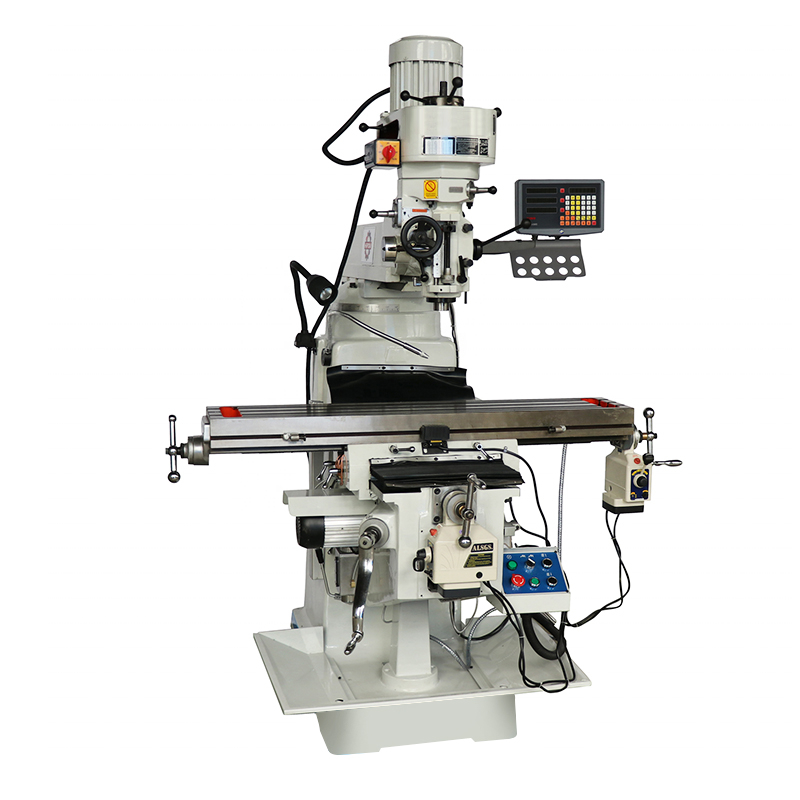

XK6325
山东邦城科技有限公司
Technical parameters:
| model | unit | XK6325 |
| Workbench size | mm | 254x1270 / 254x1370 |
| Vertical stroke | mm | 850 / 950 |
| Horizontal itinerary | mm | 420 / 400 |
| Vertical stroke | mm | 420 |
| Number of T-shaped grooves/width of workbench | mm | 3x16 |
| Slider stroke | mm | 470 |
| Distance from the spindle end surface to the work surface | mm | 0-405 |
| Spindle taper | standard: R8 | |
| Optionl:ISO30/ISO40 | ||
| Spindle stroke | mm | 127 |
| Spindle speed | rpm | standard: (50HZ) 65-4500 |
| optional: (variable)65-4500 | ||
| Automatic feeding of spindle sleeve | mm/rev | 0.04/0.08/0.15 |
| Main motor | kw | 2.25 |
| Head rotation | 90° | |
| Head tilt | 45° | |
| Machine weight | kg | 1550 |
Technical parameters:
| model | unit | XK6325 |
| Workbench size | mm | 254x1270 / 254x1370 |
| Vertical stroke | mm | 850 / 950 |
| Horizontal itinerary | mm | 420 / 400 |
| Vertical stroke | mm | 420 |
| Number of T-shaped grooves/width of workbench | mm | 3x16 |
| Slider stroke | mm | 470 |
| Distance from the spindle end surface to the work surface | mm | 0-405 |
| Spindle taper | standard: R8 | |
| Optionl:ISO30/ISO40 | ||
| Spindle stroke | mm | 127 |
| Spindle speed | rpm | standard: (50HZ) 65-4500 |
| optional: (variable)65-4500 | ||
| Automatic feeding of spindle sleeve | mm/rev | 0.04/0.08/0.15 |
| Main motor | kw | 2.25 |
| Head rotation | 90° | |
| Head tilt | 45° | |
| Machine weight | kg | 1550 |
