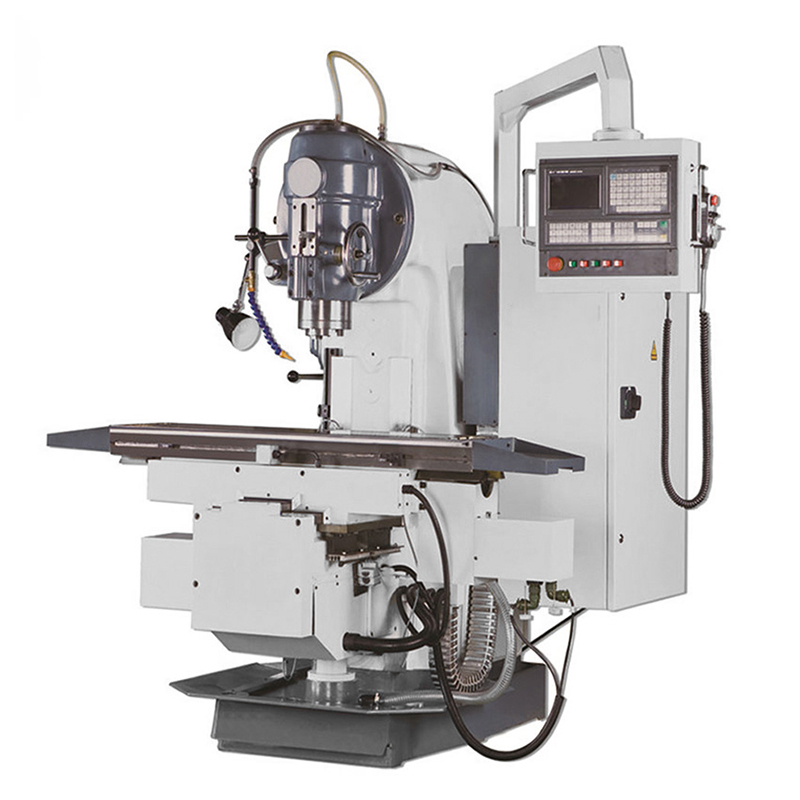

XK5032
山东邦城科技有限公司
Technical parameters:
| model | unit | XK5032 |
| Workbench size | mm | 1320x320 |
| Workbench itinerary XYZ | mm | 800x280x350 |
| Number of T-shaped grooves/width/pad | mm | 3-18-70 |
| Maximum load bearing of workbench | kg | 320 |
| Distance from the spindle end face to the workbench | mm | 40-390 |
| Distance from the center of the spindle to the column guide rail surface | mm | 350 |
| Workbench fast feed speed XYZ | mm/min | 6000/6000/3000 |
| Workbench feed movement speed range XYZ | mm/min | 6-3200(3-1600) |
| Spindle stroke | mm | 70 |
| Spindle hole taper | ISO50(7:24) | |
| Maximum rotation angle of end milling head | ° | ±45° |
| Spindle speed range | rpm | 30-1500(18 steps) |
| Spindle motor power | KW | 7.5 |
| Longitudinal and transverse feed motor torque (XY) | N. m | 12 |
| Vertical feed motor torque (Z) | N. m | 22 |
| Maximum spindle torque | N. m | 1000 |
| External dimensions (length x width x height) | mm | 1929x2055x1960 |
| The weight of the whole machine | Kg | 2800 |
Technical parameters:
| model | unit | XK5032 |
| Workbench size | mm | 1320x320 |
| Workbench itinerary XYZ | mm | 800x280x350 |
| Number of T-shaped grooves/width/pad | mm | 3-18-70 |
| Maximum load bearing of workbench | kg | 320 |
| Distance from the spindle end face to the workbench | mm | 40-390 |
| Distance from the center of the spindle to the column guide rail surface | mm | 350 |
| Workbench fast feed speed XYZ | mm/min | 6000/6000/3000 |
| Workbench feed movement speed range XYZ | mm/min | 6-3200(3-1600) |
| Spindle stroke | mm | 70 |
| Spindle hole taper | ISO50(7:24) | |
| Maximum rotation angle of end milling head | ° | ±45° |
| Spindle speed range | rpm | 30-1500(18 steps) |
| Spindle motor power | KW | 7.5 |
| Longitudinal and transverse feed motor torque (XY) | N. m | 12 |
| Vertical feed motor torque (Z) | N. m | 22 |
| Maximum spindle torque | N. m | 1000 |
| External dimensions (length x width x height) | mm | 1929x2055x1960 |
| The weight of the whole machine | Kg | 2800 |
