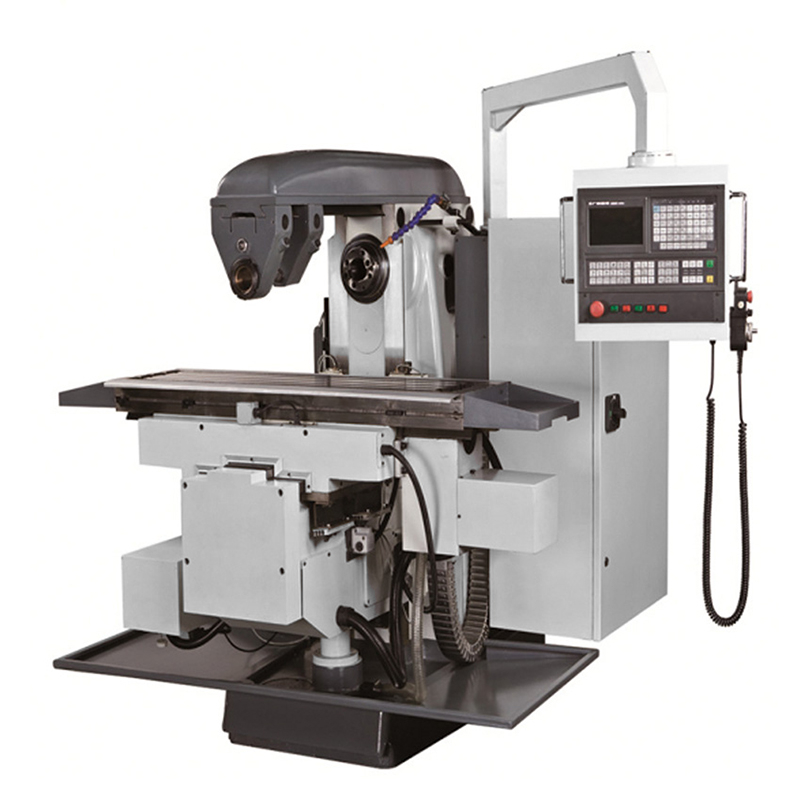

XK6132
山东邦城科技有限公司
Technical parameters:
| model | unit | XK6132 |
| Work surface size | mm | 1325×320 |
| X-axis stroke | mm | 900 |
| Y-axis stroke | mm | 290 |
| Z-axis stroke | mm | 350 |
| Workbench T-slot | mm | 3-18-80 |
| Spindle speed | rpm | 30-1500 (level 18) |
| Spindle hole taper | ISO 50(7:24) | |
| Distance from the center of the spindle to the work surface | mm | 20-370 |
| Main motor power | kw | 7.5 |
| Vertical and transverse feed motor torque (X, Y) | Nm | 12 |
| Vertical feed motor torque | Nm | 22 |
| Longitudinal motorized feed of workbench | mm | In finte |
| Workbench horizontal motorized feed | mm | In finte |
| Workbench vertically motorized feed | mm | In finte |
| Machine tool weight | kg | 3000 |
| Machine tool size | mm | 2300×1900×2300 |
Technical parameters:
| model | unit | XK6132 |
| Work surface size | mm | 1325×320 |
| X-axis stroke | mm | 900 |
| Y-axis stroke | mm | 290 |
| Z-axis stroke | mm | 350 |
| Workbench T-slot | mm | 3-18-80 |
| Spindle speed | rpm | 30-1500 (level 18) |
| Spindle hole taper | ISO 50(7:24) | |
| Distance from the center of the spindle to the work surface | mm | 20-370 |
| Main motor power | kw | 7.5 |
| Vertical and transverse feed motor torque (X, Y) | Nm | 12 |
| Vertical feed motor torque | Nm | 22 |
| Longitudinal motorized feed of workbench | mm | In finte |
| Workbench horizontal motorized feed | mm | In finte |
| Workbench vertically motorized feed | mm | In finte |
| Machine tool weight | kg | 3000 |
| Machine tool size | mm | 2300×1900×2300 |
