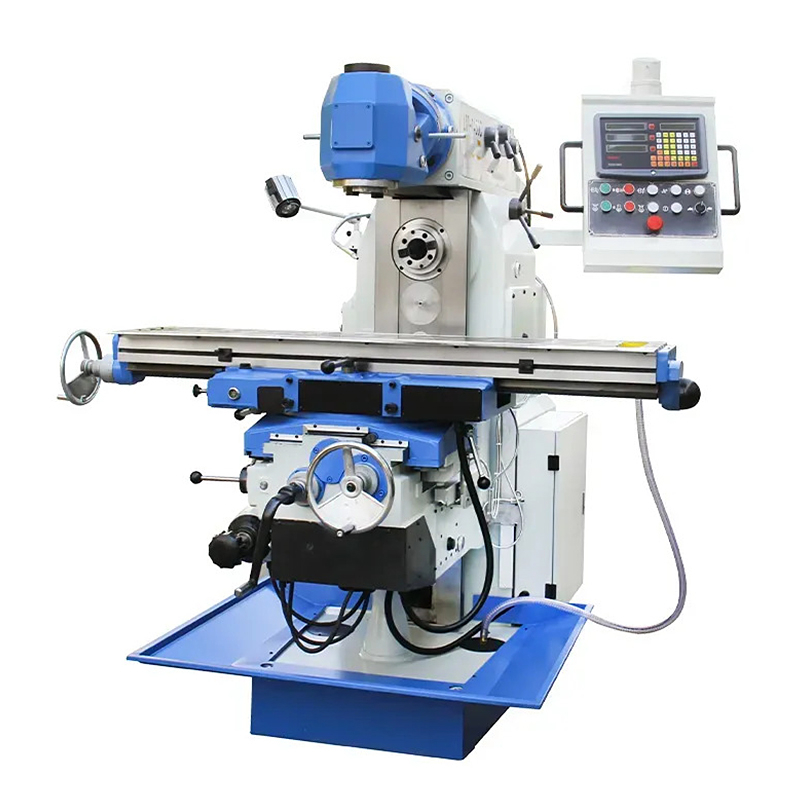

X6232
山东邦城科技有限公司
Technical parameters:
| model | unit | X6232 |
| Workbench size | mm | 1370x320 |
| Workbench itinerary | mm | 800/320/400 |
| T-shaped slot number/width/pad | mm | 3-16-60 |
| Spindle taper | ISO40 | |
| Spindle speed range | rpm | 48-1660rpm |
| Distance from the spindle end surface to the workbench | mm | 120-520 |
| Distance from the center of the horizontal axis to the workbench | mm | 0-400 |
| Workbench feed range | mm /min | XY:22-555 |
| Z:electric | ||
| Milling head rotation angle | ° | 360 |
| Main motor power | kw | 3 |
| Feed motor power | kw | 1.1 |
| weight | kg | 1700 |
| External dimensions | mm | 1700x1560x1750 |
Technical parameters:
| model | unit | X6232 |
| Workbench size | mm | 1370x320 |
| Workbench itinerary | mm | 800/320/400 |
| T-shaped slot number/width/pad | mm | 3-16-60 |
| Spindle taper | ISO40 | |
| Spindle speed range | rpm | 48-1660rpm |
| Distance from the spindle end surface to the workbench | mm | 120-520 |
| Distance from the center of the horizontal axis to the workbench | mm | 0-400 |
| Workbench feed range | mm /min | XY:22-555 |
| Z:electric | ||
| Milling head rotation angle | ° | 360 |
| Main motor power | kw | 3 |
| Feed motor power | kw | 1.1 |
| weight | kg | 1700 |
| External dimensions | mm | 1700x1560x1750 |
