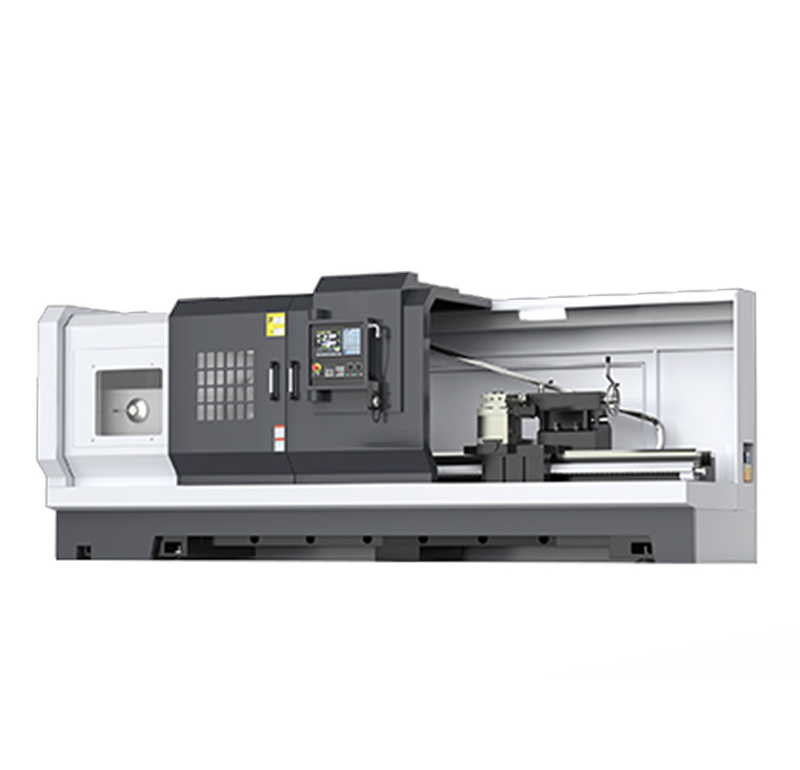

CK61100
山东邦城科技有限公司
Technical parameters:
| model | unit | CK61100 |
| Maximum slewing diameter of bed | mm | 1000 |
| Maximum slewing diameter on cross-slide | mm | 680 |
| Maximum workpiece length | mm | 1000/1500/2000/3000/4000/5000/6000 |
| Bed rail width | mm | 600 |
| Bed body load bearing range | T | 4 |
| Spindle bore size range | mm | 105 |
| Spindle diameter taper | - | Metric Φ120/MT5 |
| Spindle nose model | - | C11 |
| Spindle speed stage | - | 3-speed frequency conversion |
| VF.3 steps | ||
| Spindle speed range | rpm | 20-800 |
| Chuck specifications | mm | Φ400 manual three-jaw |
| Knife holder type | - | 4-station electric tool holder |
| Electric4 position | ||
| Tool size | mm | 40x40 |
| X-axis stroke | mm | 520 |
| Z-axis stroke | mm | 850/1350/1850/2850/3850/4850/5850 |
| X-axis fast feed speed | mm/min | 4000 |
| Z-axis fast feed speed | mm/min | 6000 |
| Tail seat sleeve diameter | mm | Φ120 |
| Tail seat sleeve tapering | - | MT6 |
| Tail seat sleeve stroke | mm | 250 |
| Spindle motor | kW | 15 |
| Cooling pump motor | kW | 0.25 |
| Machine tool weight | kg | 5000 |
| kg | 5400 | |
| kg | 5800 | |
| kg | 6600 | |
| kg | 7400 | |
| kg | 8200 | |
| kg | 9000 | |
| External dimensions | mm | 3500x2000x2100 |
| mm | 4000x2000x2100 | |
| mm | 4500x2000x2100 | |
| mm | 5500x2000x2100 | |
| mm | 6500x2000x2100 | |
| mm | 7500x2000x2100 | |
| mm | 8500x2000x2100 |
