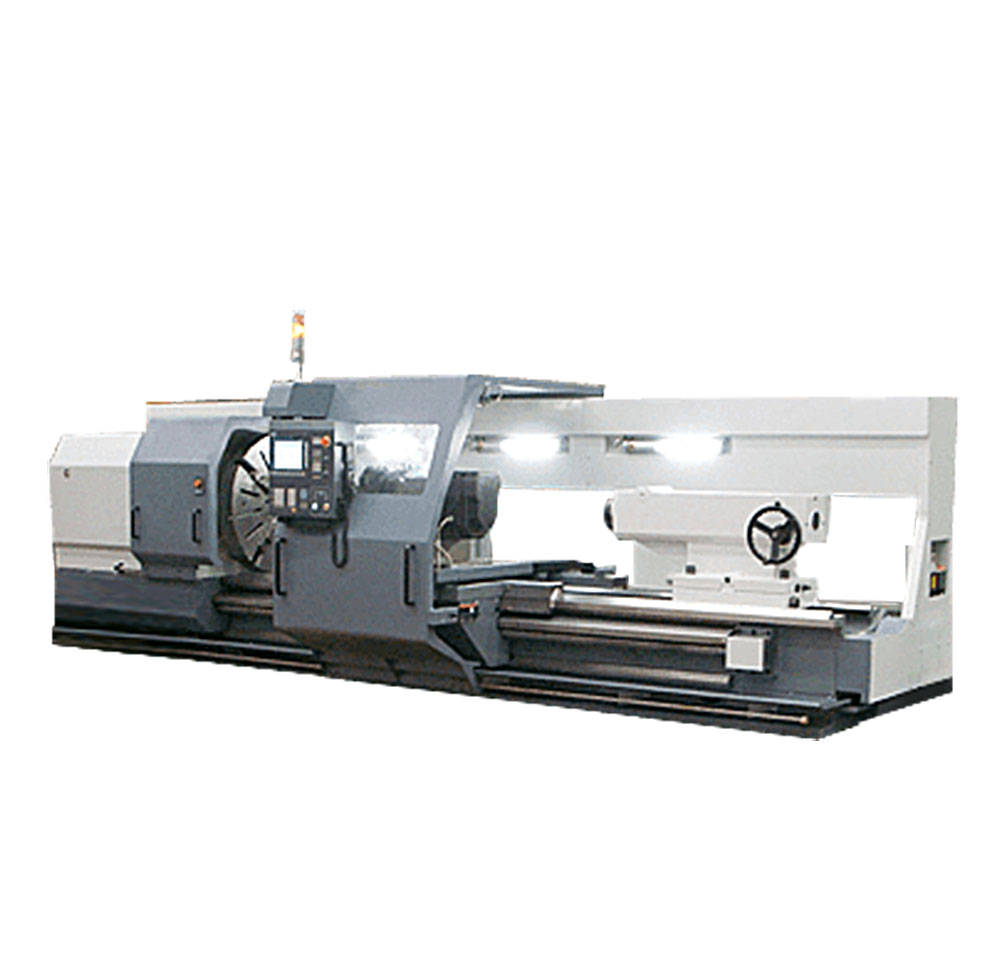

CK61180
山东邦城科技有限公司
Technical parameters:
| model | unit | CK61180 |
| Maximum slewing diameter of bed | mm | 1900 |
| Maximum slewing diameter on cross-slide | mm | 1450 |
| Maximum workpiece length | mm | 3000-20000 |
| Bed rail width | mm | 1100 |
| Bed body load bearing range | T | 10/15 (G/I)/20 (G/II)/30 (G/III) |
| Spindle bore size range | mm | 100 /130 |
| Spindle diameter taper | - | Metric Metric120 / Metric Metric140 |
| Spindle nose model | - | 1:30 extended spindle head |
| Spindle speed stage | - | 4-speed frequency conversion/VF. 4steps |
| Spindle speed range | pm | 10-300/2-200 |
| Chuck specifications | mm | φ1600 manual four-claw/φ1600 4-jaw manual |
| Knife holder type | - | 4-station electric tool holder Electric 4 position |
| Tool size | mm | 50*50 |
| X-axis stroke | mm | 850 |
| Z-axis stroke | mm | 2750-19750 |
| X-axis fast feed speed | mm/min | 4000 |
| Z-axis fast feed speed | mm/min | 6000 |
| Tail seat sleeve diameter | mm | φ260 |
| Tail seat sleeve tapering | Metric 80/Metric 80 | |
| Tail seat sleeve stroke | mm | 300 |
| Spindle motor | kW | 37 |
| Cooling pump motor | kW | 0.25 |
| External dimensions (width x height) | mm | 2300*2250 |
| Dimensions and lengths | mm | 7200-24200 |
| Machine weight (5 meters specification) | t | 23 |
Technical parameters:
| model | unit | CK61180 |
| Maximum slewing diameter of bed | mm | 1900 |
| Maximum slewing diameter on cross-slide | mm | 1450 |
| Maximum workpiece length | mm | 3000-20000 |
| Bed rail width | mm | 1100 |
| Bed body load bearing range | T | 10/15 (G/I)/20 (G/II)/30 (G/III) |
| Spindle bore size range | mm | 100 /130 |
| Spindle diameter taper | - | Metric Metric120 / Metric Metric140 |
| Spindle nose model | - | 1:30 extended spindle head |
| Spindle speed stage | - | 4-speed frequency conversion/VF. 4steps |
| Spindle speed range | pm | 10-300/2-200 |
| Chuck specifications | mm | φ1600 manual four-claw/φ1600 4-jaw manual |
| Knife holder type | - | 4-station electric tool holder Electric 4 position |
| Tool size | mm | 50*50 |
| X-axis stroke | mm | 850 |
| Z-axis stroke | mm | 2750-19750 |
| X-axis fast feed speed | mm/min | 4000 |
| Z-axis fast feed speed | mm/min | 6000 |
| Tail seat sleeve diameter | mm | φ260 |
| Tail seat sleeve tapering | Metric 80/Metric 80 | |
| Tail seat sleeve stroke | mm | 300 |
| Spindle motor | kW | 37 |
| Cooling pump motor | kW | 0.25 |
| External dimensions (width x height) | mm | 2300*2250 |
| Dimensions and lengths | mm | 7200-24200 |
| Machine weight (5 meters specification) | t | 23 |
