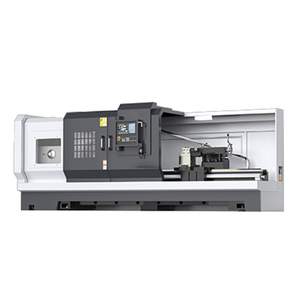

CK6132
山东邦城科技有限公司
Technical parameters:
| model | unit | CK6132 |
| Maximum slewing diameter of bed | mm | 320 |
| Maximum slewing diameter on cross-slide | mm | 110 |
| Maximum workpiece length | mm | 500/700 |
| Spindle bore size range | mm | 60 |
| Spindle diameter taper | - | MT6 |
| Spindle nose model | - | A2-5 |
| Spindle speed stage | - | Stepless speed change |
| Spindle speed range | rpm | 100-2000 |
| Knife holder type | - | 4-station electric tool holder Eletric 4 position |
| Tool size | mm | 20x20 |
| X-axis stroke | mm | 170 |
| Z-axis stroke | mm | 500/700 |
| X-axis fast feed speed | mm/min | 6000 |
| Z-axis fast feed speed | mm/min | 8000 |
| Tail seat sleeve diameter | mm | Φ50 |
| Tail seat sleeve tapering | - | MT4 |
| Tail seat sleeve stroke | mm | 90 |
| Spindle motor | kW | 4 |
| Cooling pump motor | kW | 0.09 |
| Machine tool weight | kg | 1200 |
| External dimensions | mm | 1900x1200x1700 |
Technical parameters:
| model | unit | CK6132 |
| Maximum slewing diameter of bed | mm | 320 |
| Maximum slewing diameter on cross-slide | mm | 110 |
| Maximum workpiece length | mm | 500/700 |
| Spindle bore size range | mm | 60 |
| Spindle diameter taper | - | MT6 |
| Spindle nose model | - | A2-5 |
| Spindle speed stage | - | Stepless speed change |
| Spindle speed range | rpm | 100-2000 |
| Knife holder type | - | 4-station electric tool holder Eletric 4 position |
| Tool size | mm | 20x20 |
| X-axis stroke | mm | 170 |
| Z-axis stroke | mm | 500/700 |
| X-axis fast feed speed | mm/min | 6000 |
| Z-axis fast feed speed | mm/min | 8000 |
| Tail seat sleeve diameter | mm | Φ50 |
| Tail seat sleeve tapering | - | MT4 |
| Tail seat sleeve stroke | mm | 90 |
| Spindle motor | kW | 4 |
| Cooling pump motor | kW | 0.09 |
| Machine tool weight | kg | 1200 |
| External dimensions | mm | 1900x1200x1700 |
