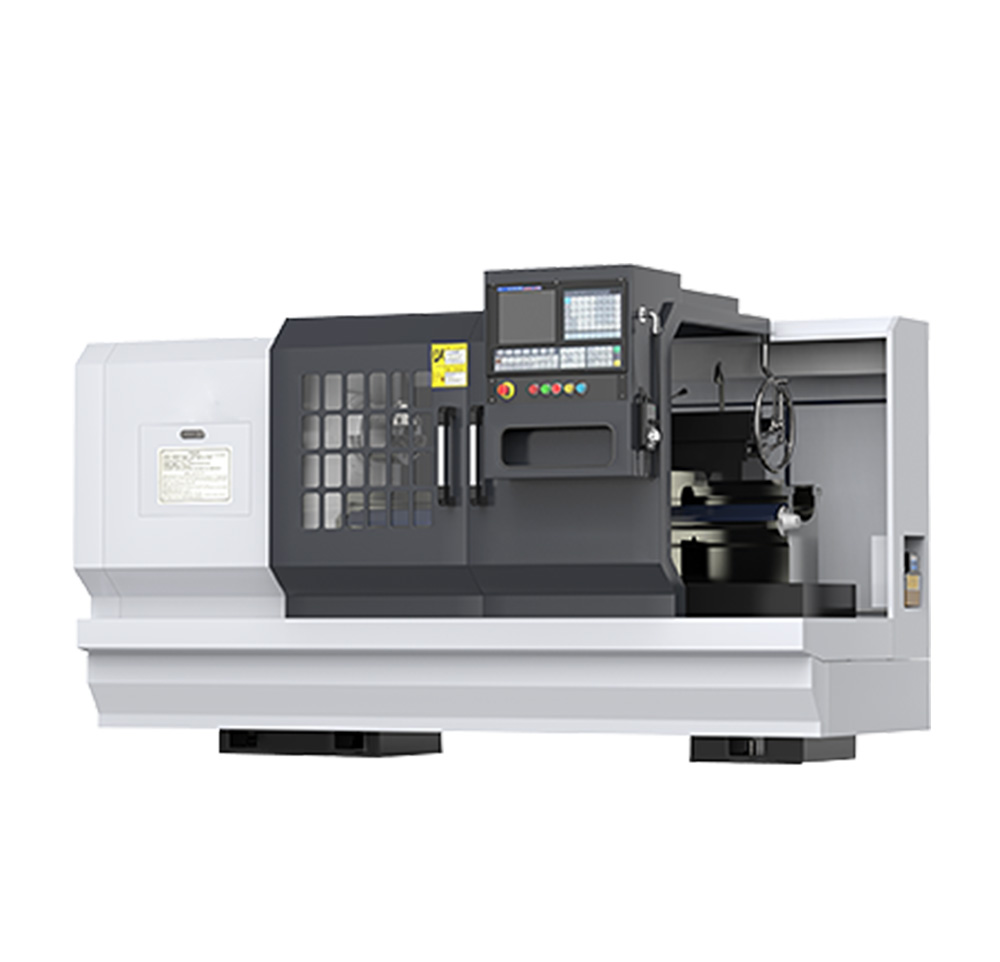

CK6140
山东邦城科技有限公司
Technical parameters:
| model | unit | CAK6140 |
| Maximum slewing diameter of bed | mm | 400 |
| Maximum slewing diameter on cross-slide | mm | 180 |
| Maximum workpiece length | mm | 1000/1500/2000/3000 |
| Spindle bore size range | mm | 82 (optional Opt.130) |
| Spindle diameter taper | - | Metric φ90/1:20 |
| Spindle nose model | - | A2-8 (optional Opt.A2-11) |
| Spindle speed stage | - | Stepless speed change |
| Spindle speed range | rpm | 1800 (optional Opt.800) |
| Knife holder type | - | 4-station electric tool holder Electric 4 position |
| Tool size | mm | 25x25 |
| X-axis stroke | mm | 280 |
| Z-axis stroke | mm | 1000/1500/2000/3000 |
| X-axis fast feed speed | mm/min | 6000 |
| Z-axis fast feed speed | mm/min | 8000 |
| Tail seat sleeve diameter | mm | 75 |
| Tail seat sleeve tapering | - | MT5 |
| Tail seat sleeve stroke | mm | 150 |
| Spindle motor | kW | 7.5 |
| Cooling pump motor | kW | 0.125 |
| Machine tool weight | kg | 2500 |
| kg | 2900 | |
| kg | 3300 | |
| External dimensions | mm | 2950x1700x1800 |
| mm | 3650x1700x1800 | |
| mm | 4250x1700x1800 |
