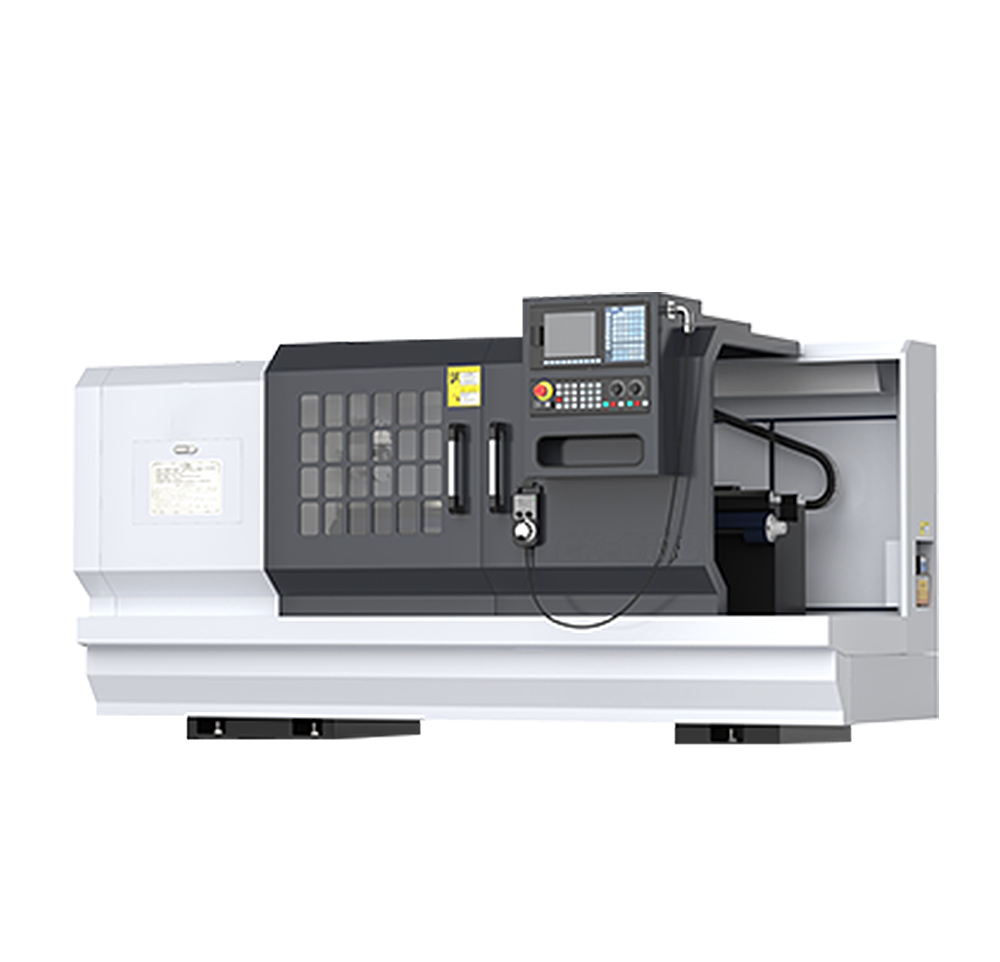

CK6160
山东邦城科技有限公司
Technical parameters:
| model | unit | CK6160 |
| Maximum slewing diameter of bed | mm | 600 |
| Maximum slewing diameter on cross-slide | mm | 350 |
| Maximum workpiece length | mm | 750/1000/1500/2000 |
| Spindle hole diameter | mm | 52(Optional 80) |
| Spindle diameter taper | - | MT6 |
| Spindle end form | - | A2-6(A2-8) |
| Spindle speed stage | rpm | Stepless Stepless |
| Spindle speed range | 1800 | |
| Knife holder type | - | Electric 4 position |
| Tool size | mm | 25*25 |
| X-axis stroke | mm | 300 |
| Z-axis stroke | mm | 550/800/1300/1800 |
| X-axis fast feed speed | mm/min | 4000 |
| Z-axis fast feed speed | mm/min | 6000 |
| Tail seat sleeve diameter | mm | 65 |
| Tail seat sleeve tapering | - | MT5 |
| Tail seat sleeve stroke | mm | 140 |
| Main motor power | kw | 5.5 |
| Cooling motor power | kw | 0.125 |
| Machine tool weight | kg | 1700 |
| kg | 1800 | |
| kg | 2000 | |
| kg | 2200 | |
| External dimensions (length x width x height) | mm | 2200x1750x1800 |
| mm | 2500x1750x1800 | |
| mm | 3000x1750x1800 | |
| mm | 3500x1750x1800 |
