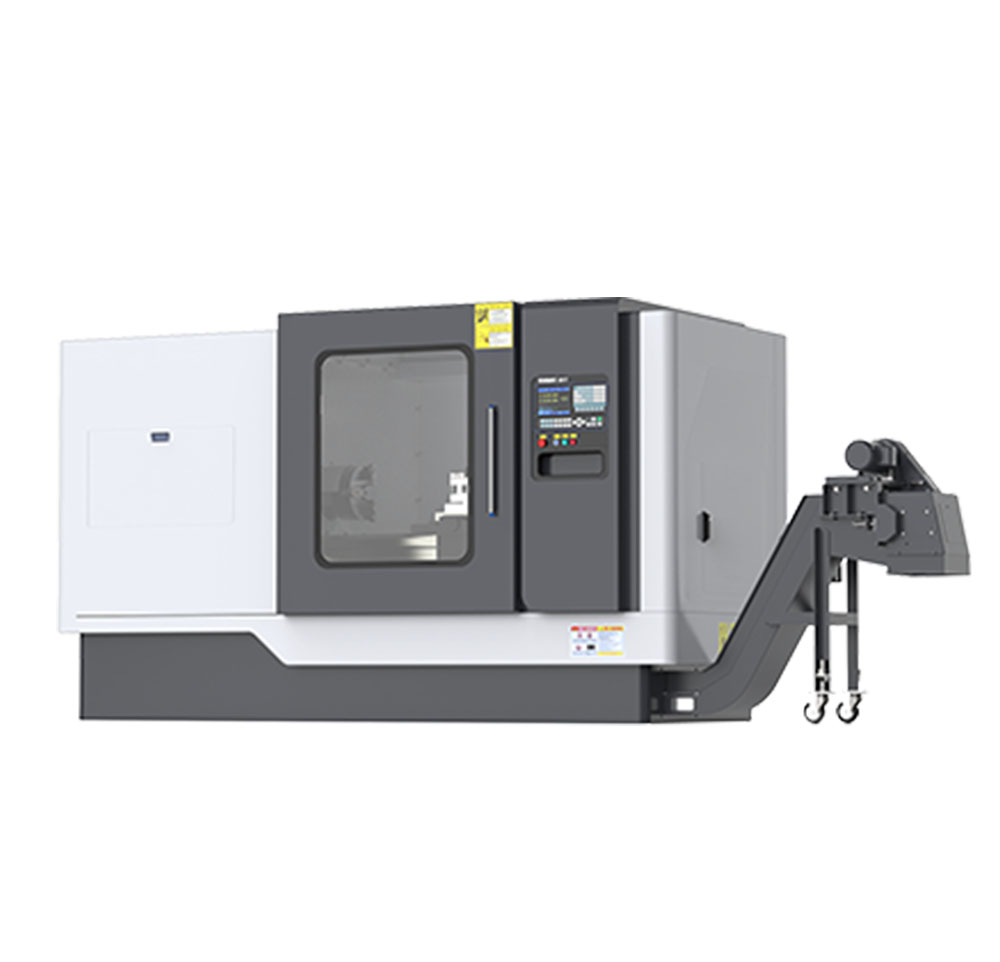

H46
山东邦城科技有限公司
Technical parameters:
| model | unit | H46 |
| Maximum slewing diameter of bed | mm | 460 |
| Maximum slewing diameter on cross-slide | mm | 140 |
| Maximum workpiece length | mm | 330 |
| Spindle bore size range | mm | 56 |
| Spindle nose model | - | A2-5 |
| Spindle speed stage | - | Stepless speed change |
| Spindle speed range | rpm | 3500 |
| Knife holder type | - | Knives Gang type |
| Tool size | mm | 25x25 |
| X-axis stroke | mm | 360 |
| Z-axis stroke | mm | 330 |
| X-axis fast feed speed | mm/min | 15000 |
| Z-axis fast feed speed | mm/min | 15000 |
| Spindle motor | kW | 5.5 |
| Guide rail form | - | Linear rail |
| Machine tool weight | kg | 2200 |
| External dimensions | mm | 2300x1800x1600 |
Technical parameters:
| model | unit | H46 |
| Maximum slewing diameter of bed | mm | 460 |
| Maximum slewing diameter on cross-slide | mm | 140 |
| Maximum workpiece length | mm | 330 |
| Spindle bore size range | mm | 56 |
| Spindle nose model | - | A2-5 |
| Spindle speed stage | - | Stepless speed change |
| Spindle speed range | rpm | 3500 |
| Knife holder type | - | Knives Gang type |
| Tool size | mm | 25x25 |
| X-axis stroke | mm | 360 |
| Z-axis stroke | mm | 330 |
| X-axis fast feed speed | mm/min | 15000 |
| Z-axis fast feed speed | mm/min | 15000 |
| Spindle motor | kW | 5.5 |
| Guide rail form | - | Linear rail |
| Machine tool weight | kg | 2200 |
| External dimensions | mm | 2300x1800x1600 |
