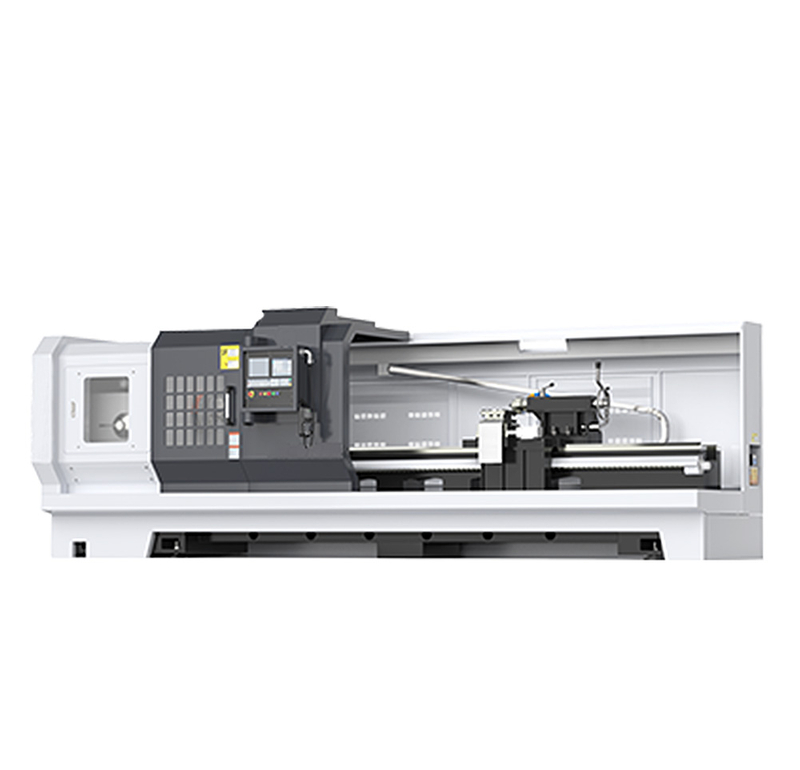

CK61140
山东邦城科技有限公司
Technical parameters:
| model | unit | CK61140 |
| Maximum slewing diameter of bed | mm | 1500 |
| Maximum slewing diameter on cross-slide | mm | 1050 |
| Maximum workpiece length | mm | 3000-20000 |
| Bed rail width | mm | 1100 |
| Bed body load bearing range | T | 10/20/30 |
| Spindle bore size range | mm | 100 |
| Spindle diameter taper | - | Metric 120 Metric 120 |
| Spindle nose model | - | 1:30 extended spindle head |
| Spindle speed stage | - | 4-speed frequency conversion VF.4 steps |
| Spindle speed range | rpm | 10-300 |
| Chuck specifications | mm | Φ1250 manual four-claw |
| Φ1250 4-jaw manual | ||
| Knife holder type | - | 4-station electric tool holder Electric 4 position |
| Tool size | mm | 50x50 |
| X-axis stroke | mm | 750 |
| Z-axis stroke | mm | 2750-19750 |
| X-axis fast feed speed | mm/min | 4000 |
| Z-axis fast feed speed | mm/min | 6000 |
| Tail seat sleeve diameter | mm | Φ260 |
| Tail seat sleeve tapering | - | Metric 80 |
| Metric 80 | ||
| Tail seat sleeve stroke | mm | 300 |
| Spindle motor | kW | 30 |
| Cooling pump motor | kW | 0.25 |
| Machine tool weight | kg | 236000 |
| kg | 254000 | |
| kg | 281000 | |
| kg | 299000 | |
| External dimensions | mm | 6700x2600x2400 |
| mm | 8700x2600x2400 | |
| mm | 11700x2600x2400 | |
| mm | 13700x2600x2400 |
